TECH PUBLICDatasheet (PDF)

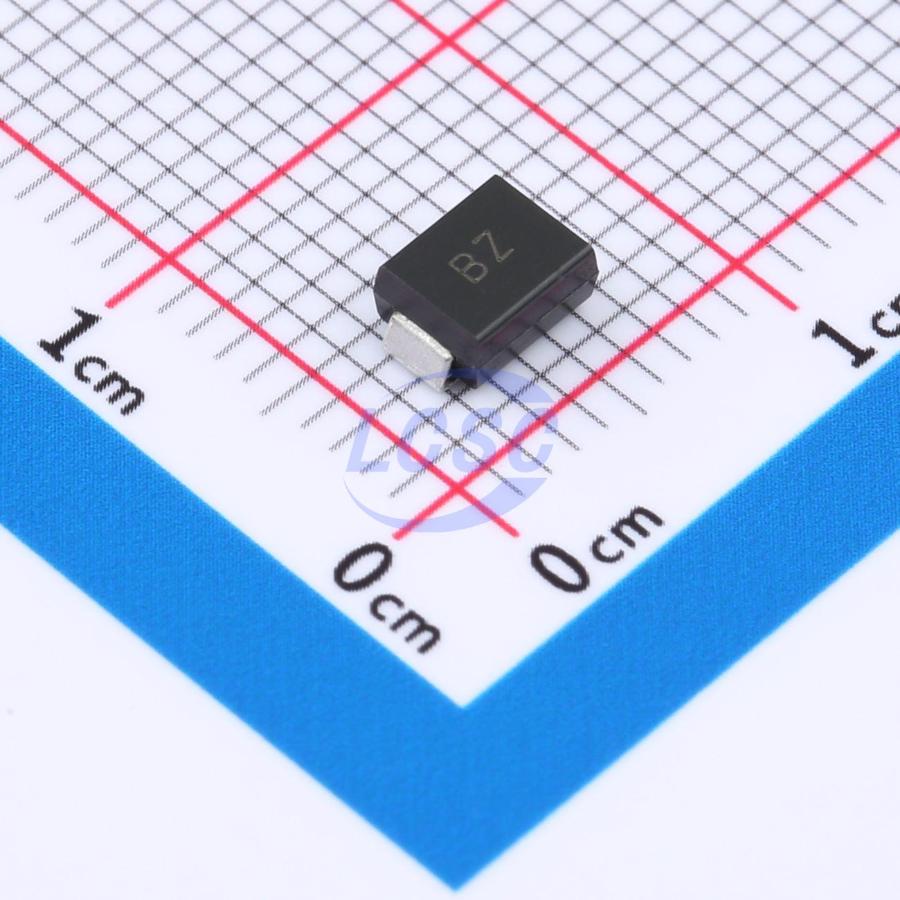

TPSMBJ24CA
38.9VC Clamp 15.4A Ipp TVS DIODE DO-214AA(SMB)
DO-214AA(SMB)RoHSActive
TVS DIODE 24VWM 38.9VC DO-214AA(SMB)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSMBJ24CA
- Store part #
- C42440505
- Package / case
- DO-214AA(SMB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,910 in stock
#C42440505
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.17 | ₹71.70 |
| 100+ | ₹5.81 | ₹581.00 |
| 300+ | ₹5.13 | ₹1,539.00 |
| 3,000+ | ₹4.13 | ₹12,390.00 |
| 6,000+ | ₹3.72 | ₹22,320.00 |
| 9,000+ | ₹3.52 | ₹31,680.00 |
10 × ₹7.17
₹71.70
excl. GST
₹84.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSMBJ24CA
₹71.70 for 10 + GST
Specifications
- Clamping Voltage
- 38.9V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 15.4A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 29.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.19 g
Overview
Applications
- Personal digital assistants (PDA)
- Cellular handsets & Accessories
- Handhelds and notebooks
- Portable instrumentation
Key features
- Peak power disspation: 600W@10×1000 us Pluse
- Low incremental surge resistance
- Excellent clamping capability
- Fast response time
- Low leakage current
- Halogen free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ26CA#C42370526TECH PUBLIC · DO-214AA(SMB) | TECH PUBLIC | DO-214AA(SMB) | 2,580 | ₹5.27 · 2,580 in stock | View |
 | TPSMBJ26CA#C42370572TECH PUBLIC · SMB | TECH PUBLIC | SMB | 1,880 | ₹6.18 · 1,880 in stock | View |
 | SMBJ24CA#C42440470TECH PUBLIC · DO-214AA(SMB) | TECH PUBLIC | DO-214AA(SMB) | 7,810 | ₹5.56 · 7,810 in stock | View |
