LittelfuseDatasheet (PDF)

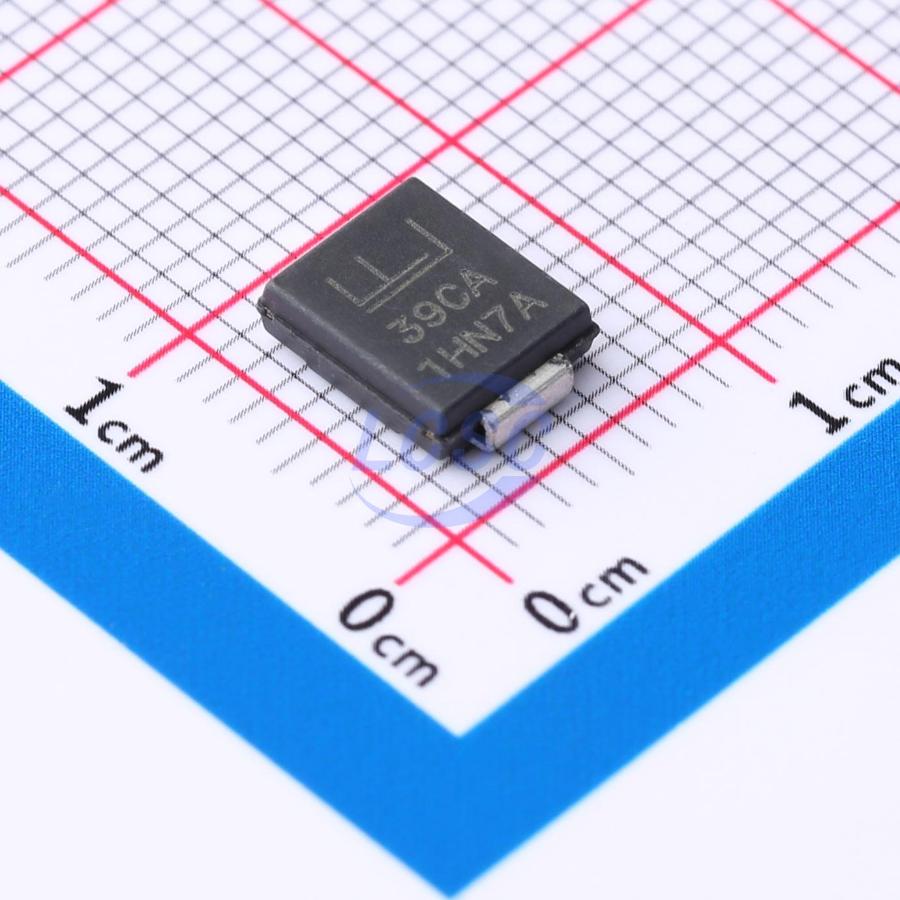

TPSMC39CA
53.9VC Clamp 28.2A Ipp TVS DIODE DO-214AB
DO-214ABROHS3 CompliantActive
TVS DIODE 33.3VWM 53.9VC DO-214AB
- Manufacturer
- Littelfuse
- Manufacturer part #
- TPSMC39CA
- Store part #
- C468923
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C468923
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.47 | ₹252.35 |
| 50+ | ₹40.07 | ₹2,003.50 |
| 150+ | ₹35.62 | ₹5,343.00 |
| 500+ | ₹30.05 | ₹15,025.00 |
| 3,000+ | ₹27.57 | ₹82,710.00 |
| 6,000+ | ₹26.09 | ₹1,56,540.00 |
5 × ₹50.47
₹252.35
excl. GST
₹297.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSMC39CA
₹252.35 for 5 + GST
Specifications
- Clamping Voltage
- 53.9V
- Peak Pulse Current (Ipp)
- 28.2A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 37.1V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 33.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.37 g
Overview
The TPSMC series is designed specifcally to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS Components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- Hi reliability application and automotive grade AEC - Q101 qualifed
- For surface mounted applications to optimize board space
- Low profle package
- Typical failure mode is short from over - specifed voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC 61000 - 4 - 2 ESD 30kV(Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000 - 4 - 2
- EFT protection of data lines in accordance with IEC 61000 - 4 - 4
- Built - in strain relief
- Glass passivated chip junction
- 1500W peak pulse power capability at 10/1000µs waveform, repetition rate (duty cycles): 0.01 %
- Fast response time: typically less than 1.0ps from 0V to VBR min
- Excellent clamping capability
- Low incremental surge resistance
- Typical |R less than 1µA above 13V
- High temperature soldering guaranteed: 260°C/10 seconds at terminals
- UL Recognized body that meets fammability rating V - 0
- Meet MSL level1, per J - STD - 020, high temperature soldering guaranteed
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb - free E3 means 2nd level interconnect is Pb - free and the terminal fnish material is tin(Sn) (IPC/JEDEC J - STD609A.01)
- UL Recognized to ANSI/ UL 497B: Protectors for Data Communications and Fire - Alarm Circuits
