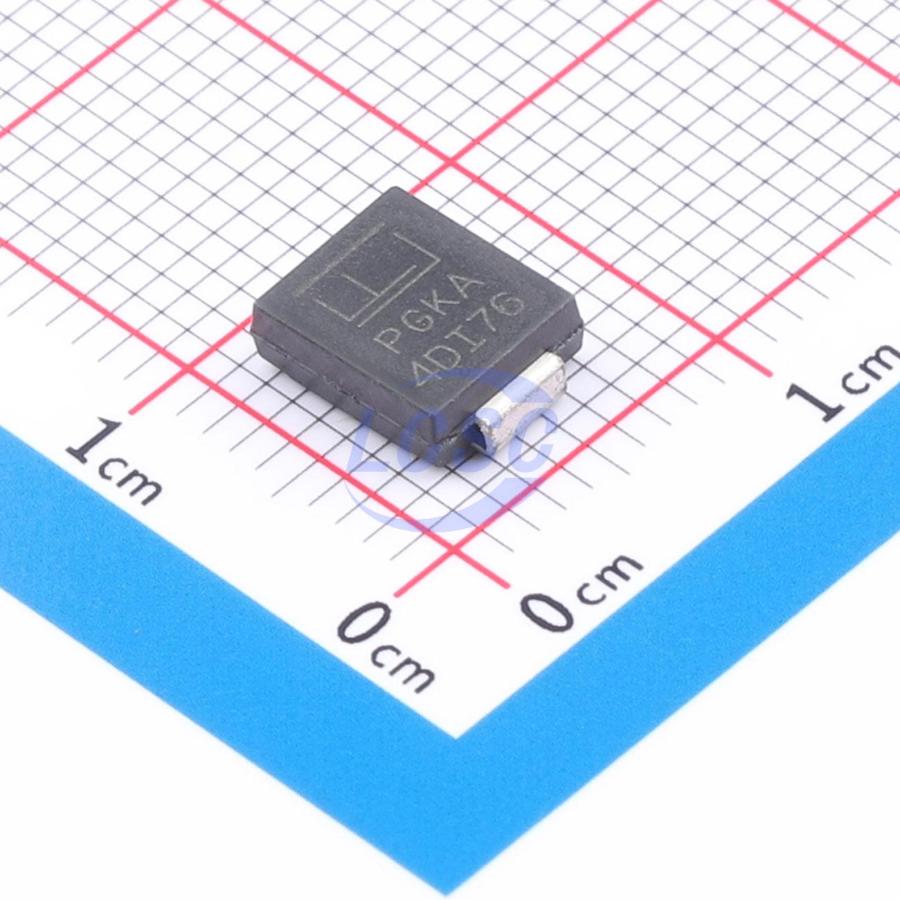

TPSMD60A

The TPSMD series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

• TVS Components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Key features

• Hi reliability application and automotive grade AEC - Q101 qualifed
• SMT for minimal boad footprint
• Low profile package
• Typical failure mode is short from over - specifed voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• IEC - 61000 - 4 - 2 ESD 30kV(Air), 30kV (Contact)
• EFT protection of data lines in accordance with IEC 61000 - 4 - 4
• Built - in strain relief
• Glass passivated chip junction
• 3000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
• Fast response time: typically less than 1.0ps from 0V to VBR min
• Excellent clamping capability
• Low incremental surge resistance
• Typical |IR| ≤ 2μA for VR > 10V
• UL Recognized compound meeting flammability rating V - 0.
• Meet MSL level1, per J - STD - 020, high temperature soldering guaranteed.
• Matte tin lead–free plated
• Halogen free and RoHS compliant
• Pb - free E3 means 2nd level interconnect is Pbfree and the terminal finish material is tin(Sn) (IPC/ JEDEC J - STD - 609A.01)
