LittelfuseDatasheet (PDF)
TPSMD60CA

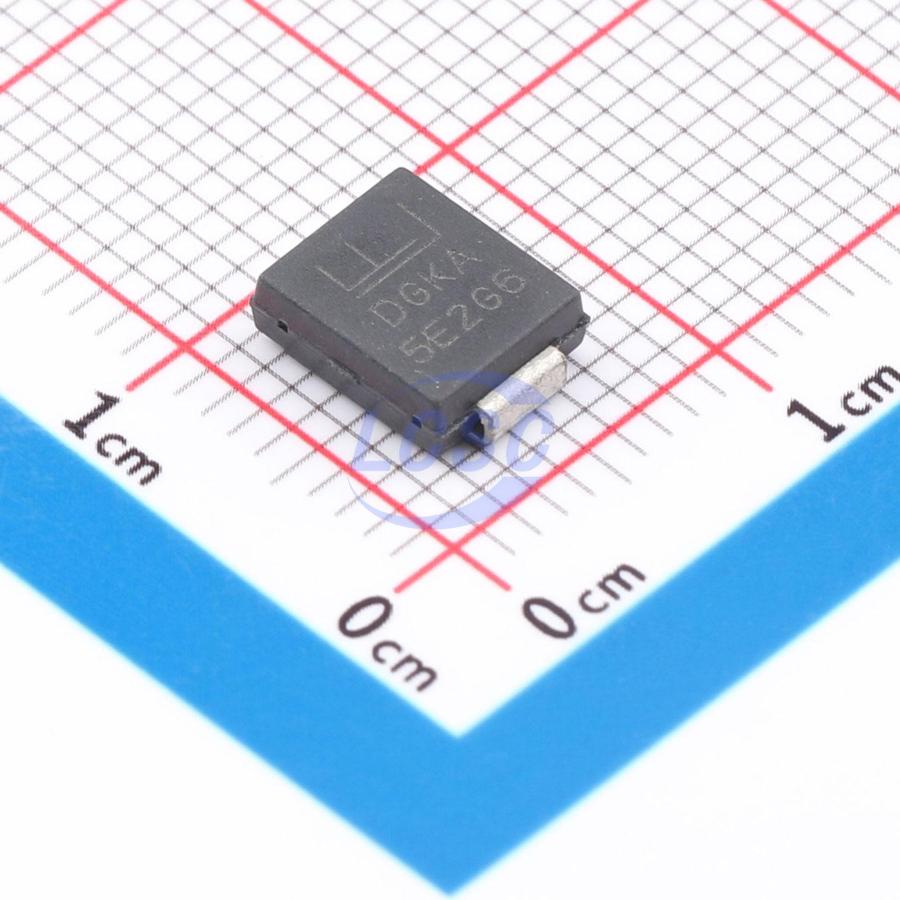

96.8VC Clamp 31A Ipp TVS DIODE DO-214AB(SMCJ)
DO-214AB(SMCJ)ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- TPSMD60CA
- Store part #
- C3715262
- Package / case
- DO-214AB(SMCJ)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
104 in stock
#C3715262
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹205.67 | ₹205.67 |
| 10+ | ₹202.45 | ₹2,024.50 |
| 30+ | ₹200.30 | ₹6,009.00 |
| 100+ | ₹198.15 | ₹19,815.00 |
1 × ₹205.67
₹205.67
excl. GST
₹242.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSMD60CA
₹205.67 for 1 + GST
Specifications
- Clamping Voltage
- 96.8V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 31A
- Peak Pulse Power Dissipation (Ppp)
- 3kW
- Number of Channels
- 1
- Voltage - Breakdown
- 66.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 2uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 60V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.31 g
Overview
The TPSMD series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS Components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- Hi reliability application and automotive grade AEC - Q101 qualifed
- SMT for minimal boad footprint
- Low profile package
- Typical failure mode is short from over - specifed voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC - 61000 - 4 - 2 ESD 30kV(Air), 30kV (Contact)
- EFT protection of data lines in accordance with IEC 61000 - 4 - 4
- Built - in strain relief
- Glass passivated chip junction
- 3000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
- Fast response time: typically less than 1.0ps from 0V to VBR min
- Excellent clamping capability
- Low incremental surge resistance
- Typical |IR| ≤ 2μA for VR > 10V
- UL Recognized compound meeting flammability rating V - 0.
- Meet MSL level1, per J - STD - 020, high temperature soldering guaranteed.
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb - free E3 means 2nd level interconnect is Pbfree and the terminal finish material is tin(Sn) (IPC/ JEDEC J - STD - 609A.01)
Alternatives
Similar parts — check the datasheet before substituting.
