TECH PUBLICDatasheet (PDF)

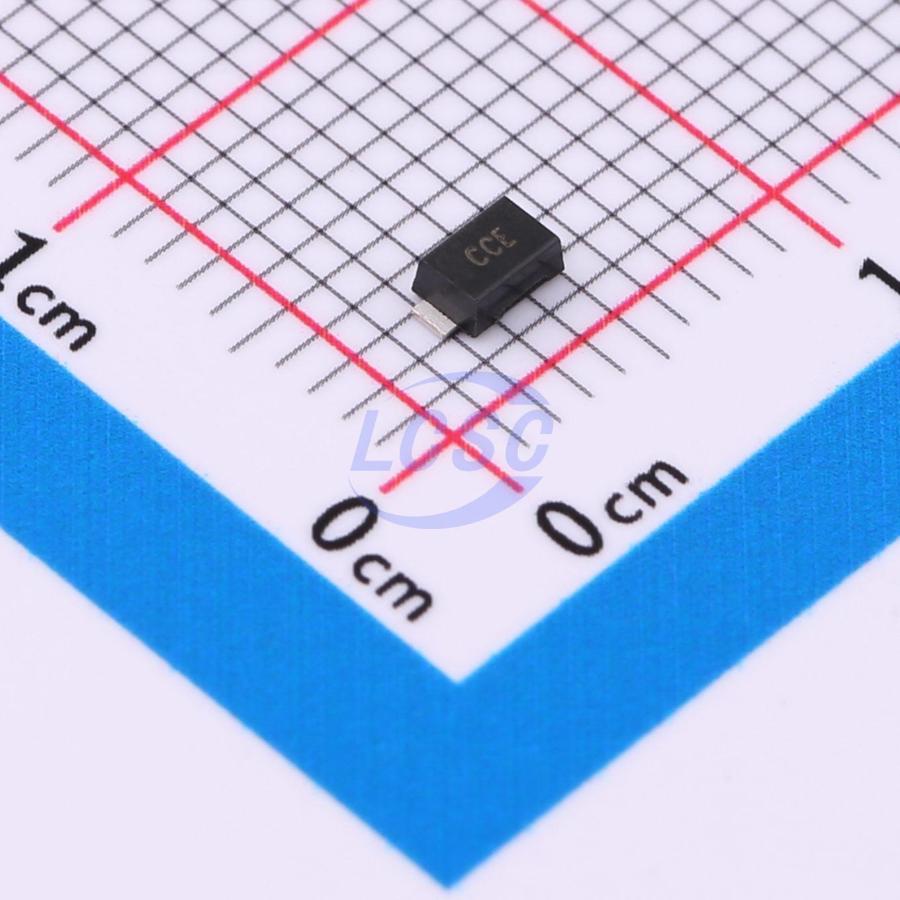

TPSMF26CA
42.1VC Clamp 4.8A Ipp SOD-123FL
SOD-123FLRoHSActive
26VWM 42.1VC SOD-123FL
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSMF26CA
- Store part #
- C42370586
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,340 in stock
#C42370586
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.65 | ₹73.00 |
| 200+ | ₹2.82 | ₹564.00 |
| 600+ | ₹2.35 | ₹1,410.00 |
| 2,000+ | ₹2.08 | ₹4,160.00 |
| 10,000+ | ₹1.84 | ₹18,400.00 |
| 20,000+ | ₹1.71 | ₹34,200.00 |
20 × ₹3.65
₹73.00
excl. GST
₹86.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSMF26CA
₹73.00 for 20 + GST
Specifications
- Clamping Voltage
- 42.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4.8A
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 31.9V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 26V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.044 g
Overview
Applications
- Personal digital assistants (PDA)
- Cellular handsets & Accessories
- Handhelds and notebooks
- Portable instrumentation
Key features
- Peak power disspation: 200W@10×1000 us Pluse
- Low incremental surge resistance
- Excellent clamping capability
- Fast response time
- Low leakage current
- Halogen free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMF26CA#C42370540TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 7,080 | ₹3.00 · 7,080 in stock | View |
 | SJD12C26L01#C54780908TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 2,980 | ₹3.98 · 2,980 in stock | View |
 | SMF24CA#C42370537TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 1,620 | ₹3.07 · 1,620 in stock | View |
 | SMFJ24CA#C42370548TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 2,980 | ₹4.14 · 2,980 in stock | View |
 | TPSMF24CA#C42370584TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 1,540 | ₹4.21 · 1,540 in stock | View |
