TECH PUBLICDatasheet (PDF)

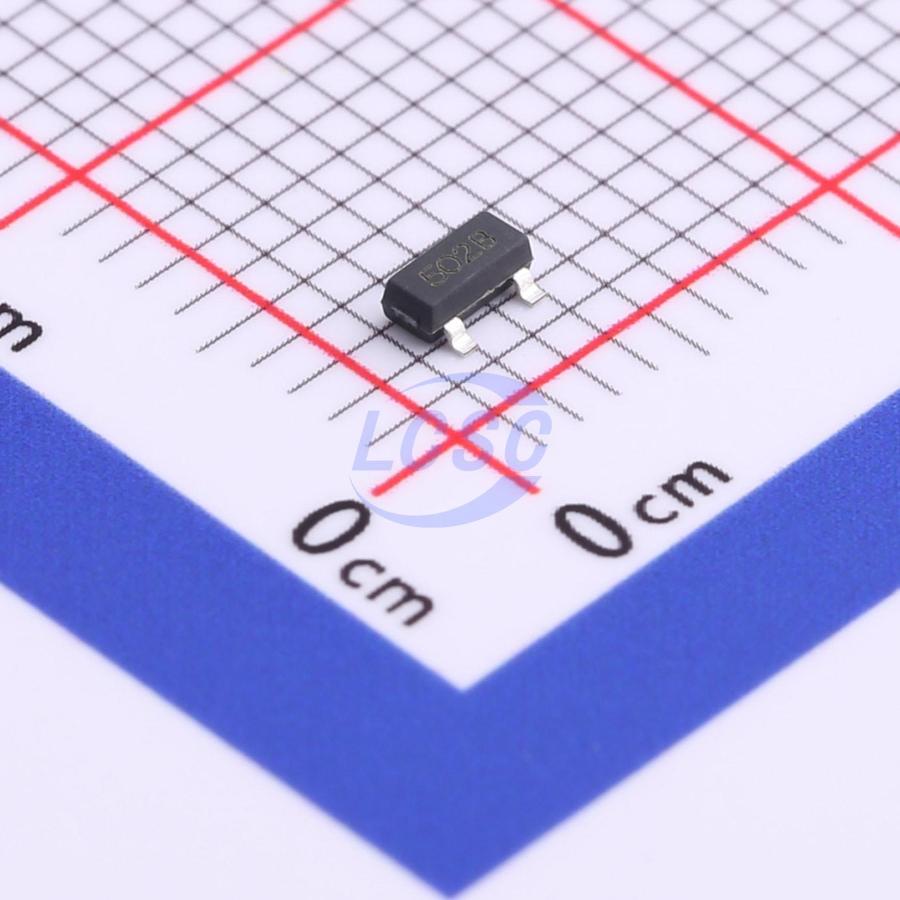

TPSP0502BAHTG
18V 10A@8/20us 150W@8/20us 6V Unidirectional 5.5V SOT-23 TVS Diodes
SOT-23RoHSActive
2-Line Uni-directional TVS Diode
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSP0502BAHTG
- Store part #
- C2827647
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,810 in stock
#C2827647
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.18 | ₹90.90 |
| 50+ | ₹14.76 | ₹738.00 |
| 150+ | ₹13.06 | ₹1,959.00 |
| 500+ | ₹11.77 | ₹5,885.00 |
| 3,000+ | ₹9.33 | ₹27,990.00 |
| 6,000+ | ₹8.81 | ₹52,860.00 |
5 × ₹18.18
₹90.90
excl. GST
₹107.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSP0502BAHTG
₹90.90 for 5 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 10A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Applications
- USB Power & Data Line Protection
- Monitors and Flat Panel Displays
- I2C Bus Protection
- Portable Instrumentation
- Set Top Box
Key features
- 150 Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ± 30kV (air), ± 30kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)
- Working voltages : 5V
- Protects one bidirectional line or two unidirectional lines
- Low operating and clamping voltages
- Solid-state silicon avalanche technology
