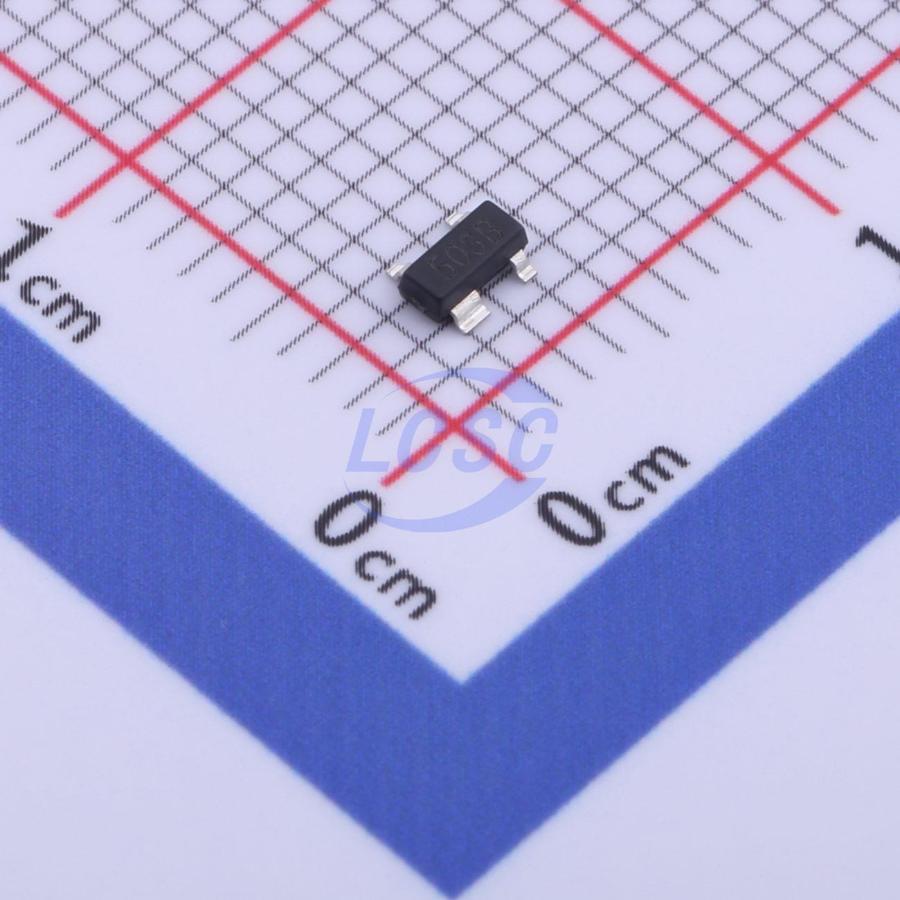

TPSP0503BAHTG
14V 10A@8/20us 150W@8/20us 6V 5.5V SOT-143 TVS Diodes
SOT-143RoHSActive
Unidirectional 3-Line TVS Array
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSP0503BAHTG
- Store part #
- C2682275
- Package / case
- SOT-143
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,515 in stock
#C2682275
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.04 | ₹65.20 |
| 50+ | ₹10.43 | ₹521.50 |
| 150+ | ₹9.13 | ₹1,369.50 |
| 500+ | ₹8.15 | ₹4,075.00 |
| 3,000+ | ₹7.37 | ₹22,110.00 |
| 6,000+ | ₹6.97 | ₹41,820.00 |
5 × ₹13.04
₹65.20
excl. GST
₹76.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSP0503BAHTG
₹65.20 for 5 + GST
Specifications
- Clamping Voltage
- 14V
- Peak Pulse Current (Ipp)
- 10A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Applications
- USB2.0 power and data line
- Set - top box and digital TV
- Digital video interface (DVI)
- Notebook Computers
- SIM Ports
- 10/100 Ethernet
Key features
- Ultra low leakage: nA level
- Operating voltage: 5.5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC 61000 - 4 - 5 (Lightning) 10A (8/20μs)
- RoHS Compliant
