TECH PUBLICDatasheet (PDF)

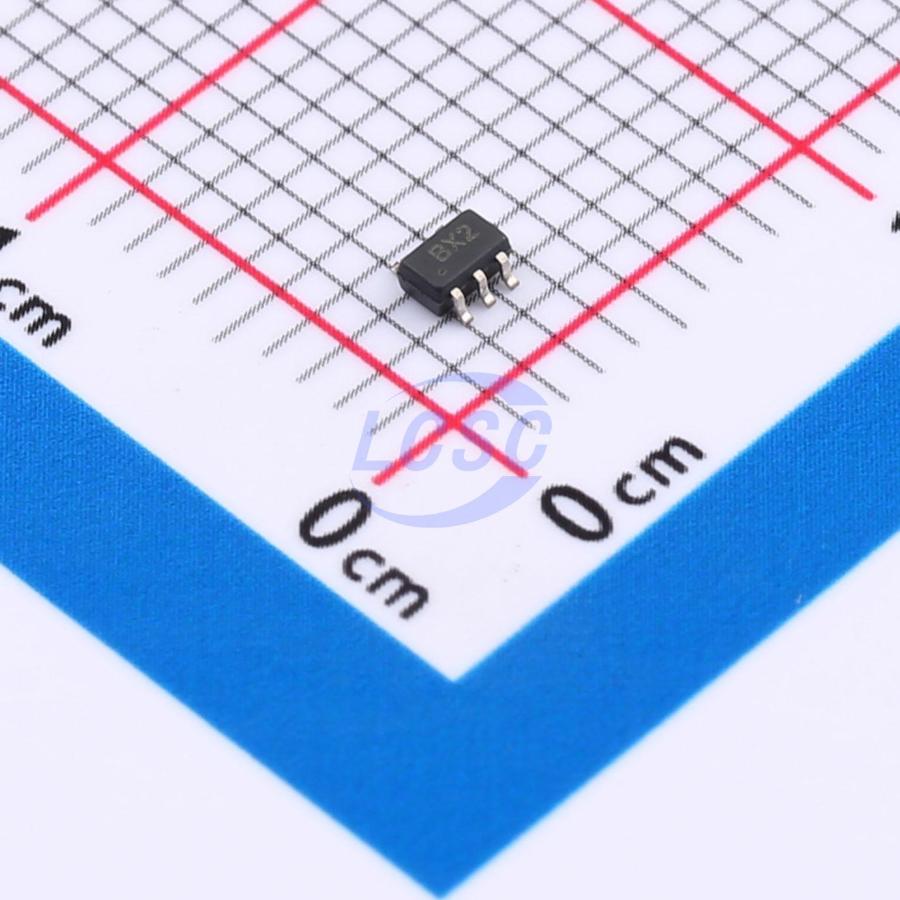

TPSP1002-02JTG
9.2VC 11.2VC Clamp 2A Ipp SOT-353
SOT-353RoHSActive
6VWM 9.2VC 11.2VC SOT-353
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSP1002-02JTG
- Store part #
- C41408102
- Package / case
- SOT-353
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,005 in stock
#C41408102
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.60 | ₹118.00 |
| 50+ | ₹18.79 | ₹939.50 |
| 150+ | ₹16.72 | ₹2,508.00 |
| 500+ | ₹14.14 | ₹7,070.00 |
| 3,000+ | ₹13.01 | ₹39,030.00 |
| 6,000+ | ₹12.32 | ₹73,920.00 |
5 × ₹23.60
₹118.00
excl. GST
₹139.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSP1002-02JTG
₹118.00 for 5 + GST
Specifications
- Clamping Voltage
- 13V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 2A
- Voltage - Breakdown
- 6V
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Applications
- Computer Peripherals
- Mobile Phones
- Digital Cameras
- Desktops/Notebooks
- LCD/PDP TVs
- Set Top Boxes
Key features
- Ultra low leakage: nA level
- Low operating voltage: 6V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±15 kV Contact discharge: ±8 kV
- IEC61000-4-5 (Lightning) 2A (8/20 μs)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- ROHS Compliant
