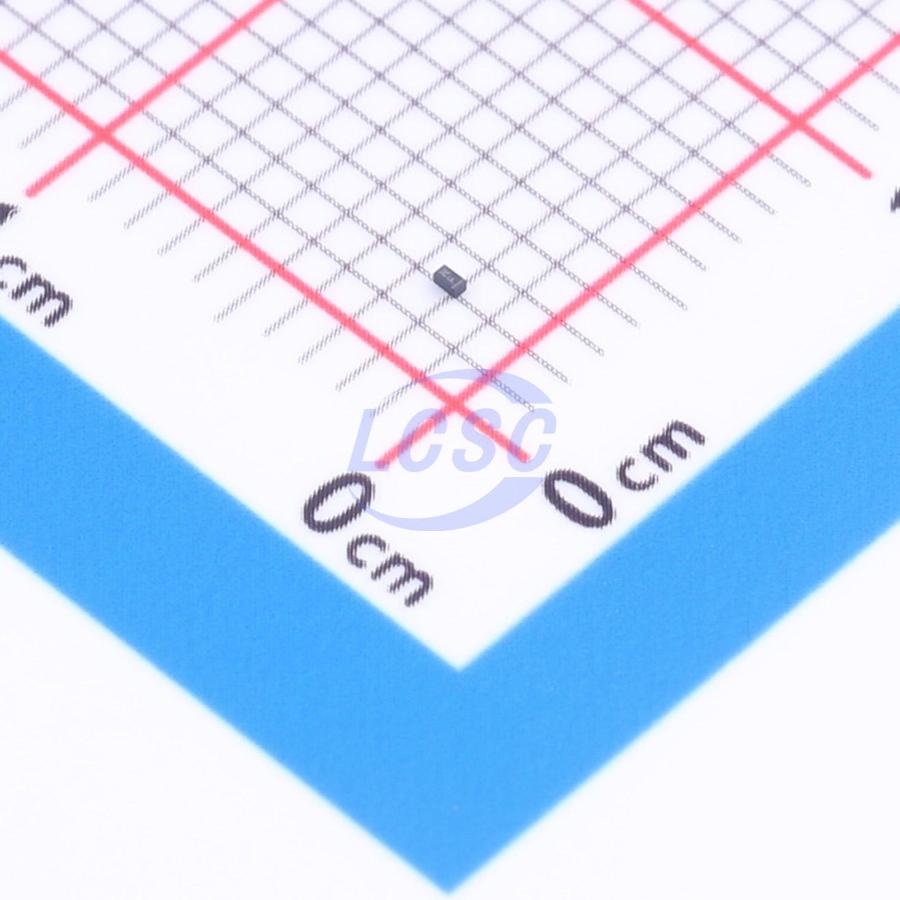

TPSP12-01WTG-C-HV
20V 7A@8/20us 150W@8/20us 13V Bidirectional 12V DFN1006-2 TVS Diodes RoHS
DFN1006-2ROHS CompliantActive
12VWM 20VC DFN1006-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSP12-01WTG-C-HV
- Store part #
- C49452318
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C49452318
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.34 | ₹53.40 |
| 100+ | ₹4.21 | ₹421.00 |
| 300+ | ₹3.64 | ₹1,092.00 |
| 1,000+ | ₹3.21 | ₹3,210.00 |
| 5,000+ | ₹2.87 | ₹14,350.00 |
| 10,000+ | ₹2.70 | ₹27,000.00 |
10 × ₹5.34
₹53.40
excl. GST
₹63.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPSP12-01WTG-C-HV
₹53.40 for 10 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 7A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 13V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 70nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.011 g
Overview
Applications
- Mobile phones & accessories
- Personal digital assistants
- Laptops & handheld devices
- Portable instruments
- Digital cameras
- Peripherals
Key features
- Ultra-small package: 0.6 x 0.3 x 0.3 mm
- Ultra-low capacitance: 9 pF typical
- Ultra-low leakage: nanoampere-level
- Low operating voltage: ±12V
- Low clamping voltage
- 2-pin leadless package
- Compliant with the following standards:
- IEC 61000-4-2 (ESD) immunity test
- Air discharge: ±30 kV
- Contact discharge: ±30 kV
- IEC61000-4-5 (Lightning Surge) 7A (8/20μs)
- Lead-free devices
- Typical response time < 1 ns
