TECH PUBLIC

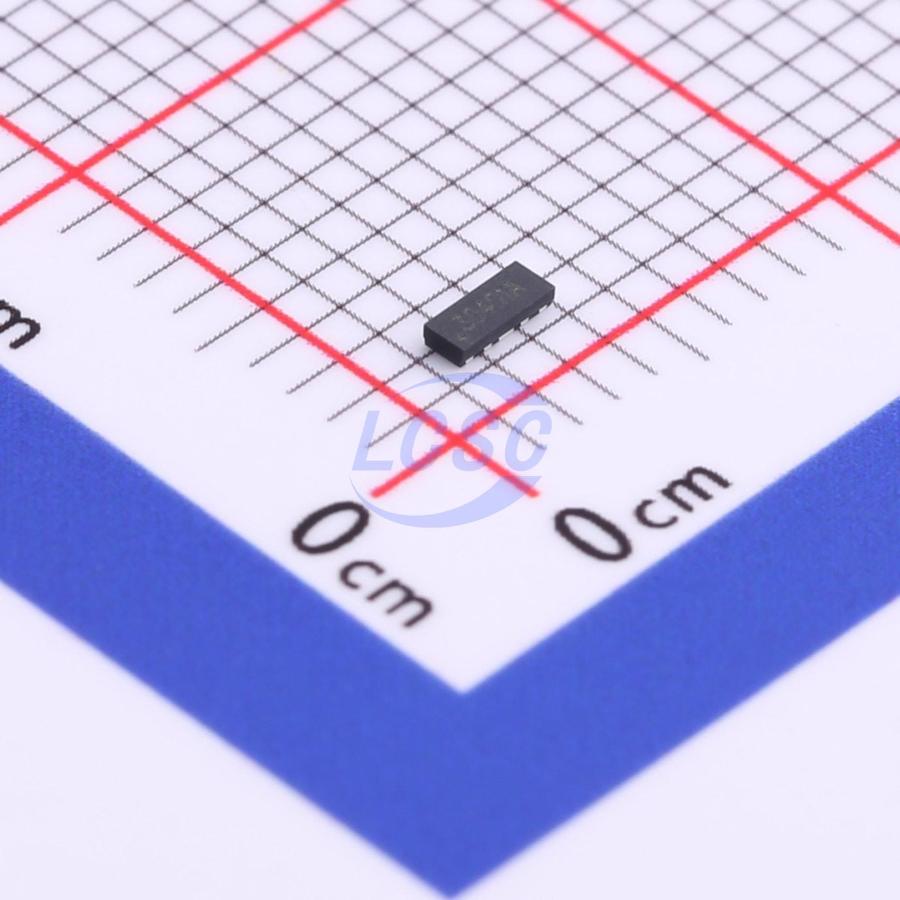

TPSP3420-04UTG

5VC Clamp 6A@8/20us Ipp ESD DIODE DFN2510-10

DFN2510-10RoHSActive

ESD DIODE 3.3VWM 5VC DFN2510-10

Manufacturer: TECH PUBLIC
Manufacturer part #: TPSP3420-04UTG
Store part #: C2827666
Package / case: DFN2510-10
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,375 in stock

#C2827666

Stock & price checked 16 days ago

Quantity	Unit price	Pack price
5+	₹19.25	₹96.25
50+	₹17.03	₹851.50
150+	₹16.07	₹2,410.50
500+	₹14.90	₹7,450.00
3,000+	₹12.63	₹37,890.00
6,000+	₹12.32	₹73,920.00

Quantity (min 5, multiples of 5)

5 × ₹19.25

₹96.25

excl. GST

₹113.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPSP3420-04UTG

₹96.25 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 7.5V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 6A@8/20us
Number of Channels: Four channels
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 80nA
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.031 g

Overview

Applications

High Definition Multimedia Interface (HDMI)
Digital Visual Interface (DVI)
Unified Display Interface (UDI)
MDDI Ports
PCI Express
SerialATA

Key features

Ultra low capacitance: 0.1pF typical (l/O to I/O)
Ultra low leakage: nA level
Low operating voltage: 3.3V
Low clamping voltage
Up to 4 data lines and one power line protects
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) : 6 A(8/20μs)
ROHS Compliant
