TECH PUBLICDatasheet (PDF)

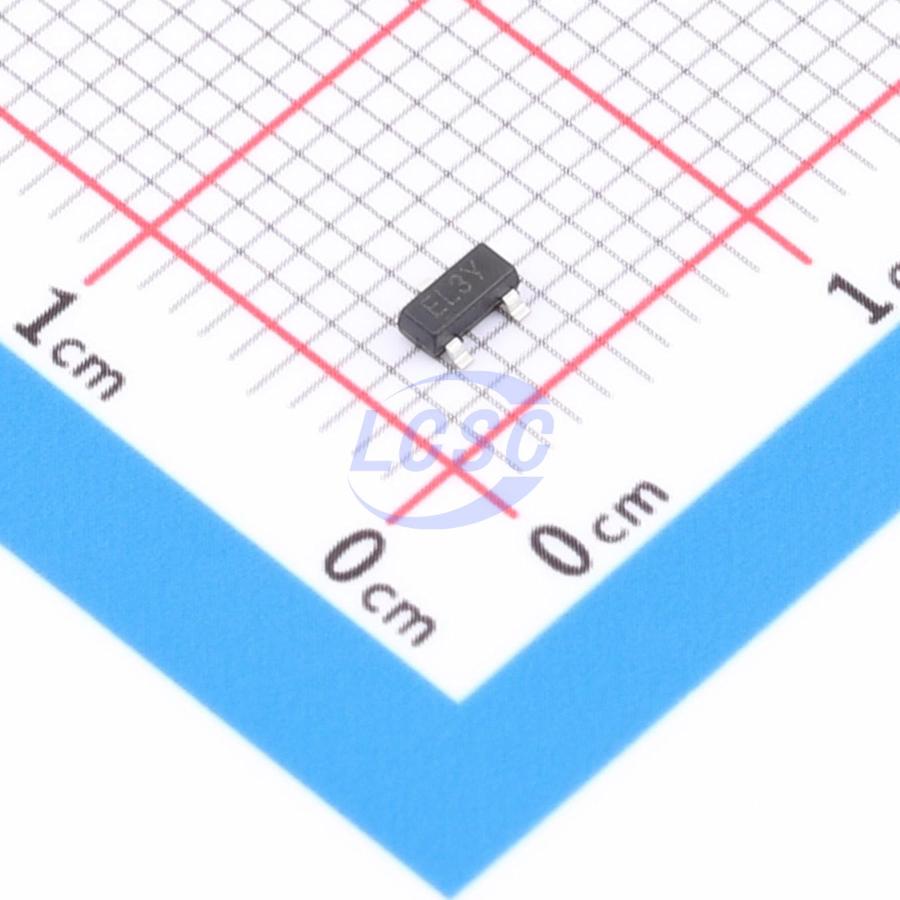

TPSTS232360U261
65V 6A@8/20us 400W@8/20us 40V Unidirectional 36V SOT-23 TVS Diodes
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSTS232360U261
- Store part #
- C53340964
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C53340964
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.89 | ₹58.90 |
| 100+ | ₹4.63 | ₹463.00 |
| 300+ | ₹4.00 | ₹1,200.00 |
| 3,000+ | ₹3.53 | ₹10,590.00 |
| 6,000+ | ₹3.15 | ₹18,900.00 |
| 9,000+ | ₹2.96 | ₹26,640.00 |
10 × ₹5.89
₹58.90
excl. GST
₹69.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSTS232360U261
₹58.90 for 10 + GST
Specifications
- Clamping Voltage
- 65V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W@8/20us
- Voltage - Breakdown
- 40V
- Number of Channels
- 2
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
Applications
- Mobile phones & accessories
- Personal digital assistants
- Laptops & handheld devices
- Portable instruments
- Peripheral devices
Key features
- Low operating voltage: 36V
- Pulse peak power (8/20μs): 400W
- Ultra-low leakage: nanoamp level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test: air discharge ±30kV, contact discharge ±30kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- 3-pin lead-free package
- These are lead-free devices
- Response time typically < 1 ns
