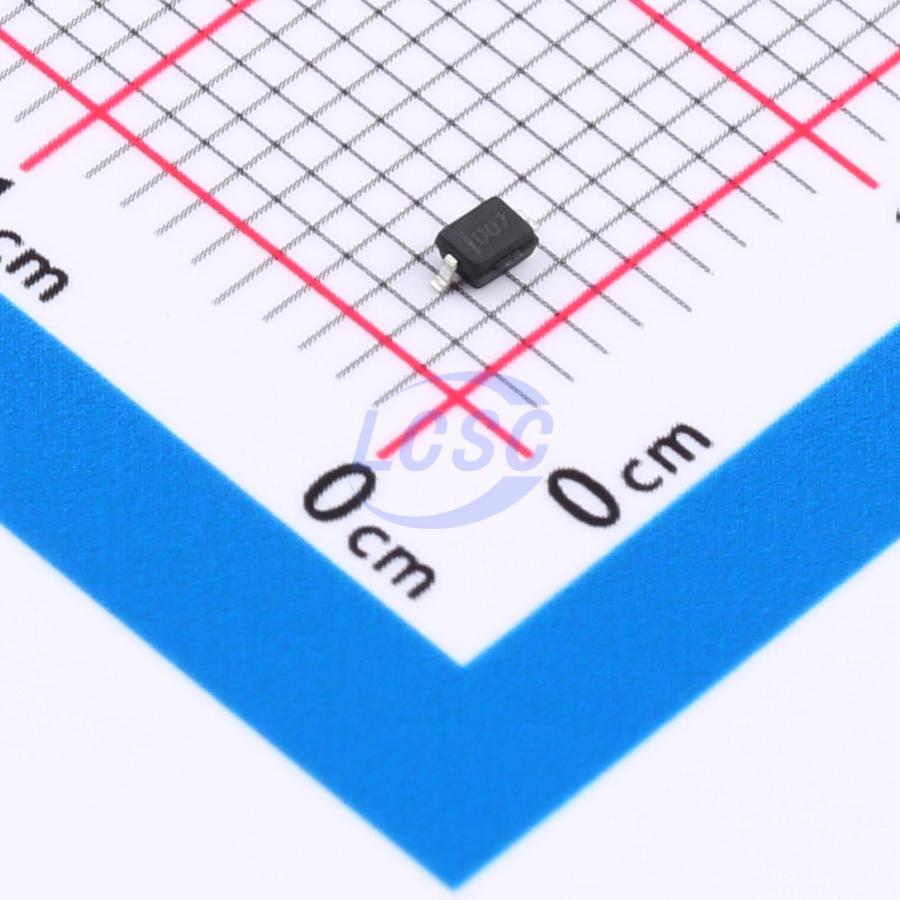

TECH PUBLICDatasheet (PDF)
TPTVS0761UK
18VC Clamp 40A@8/20us Ipp SOD-323
SOD-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTVS0761UK
- Store part #
- C19829455
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C19829455
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.62 | ₹106.20 |
| 100+ | ₹8.53 | ₹853.00 |
| 300+ | ₹7.49 | ₹2,247.00 |
| 3,000+ | ₹6.71 | ₹20,130.00 |
| 6,000+ | ₹6.09 | ₹36,540.00 |
| 9,000+ | ₹5.77 | ₹51,930.00 |
10 × ₹10.62
₹106.20
excl. GST
₹125.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTVS0761UK
₹106.20 for 10 + GST
Specifications
- Clamping Voltage
- 18V
- Peak Pulse Current (Ipp)
- 40A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 720W@8/20us
- Voltage - Breakdown
- 9.5V
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Applications
- Laptop Computers
- Cellular Phones
- Digital Cameras
- Personal Digital Assistants(PDAs)
Key features
- 2-pin lead-less package
- Junction capacitance (Max value: 350pF)
- Peak Pulse current (8/20 μs) MAX: 40A
- IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
- Low leakage current
- Working voltages: 7V
- RoHS Compliant
