TECH PUBLIC

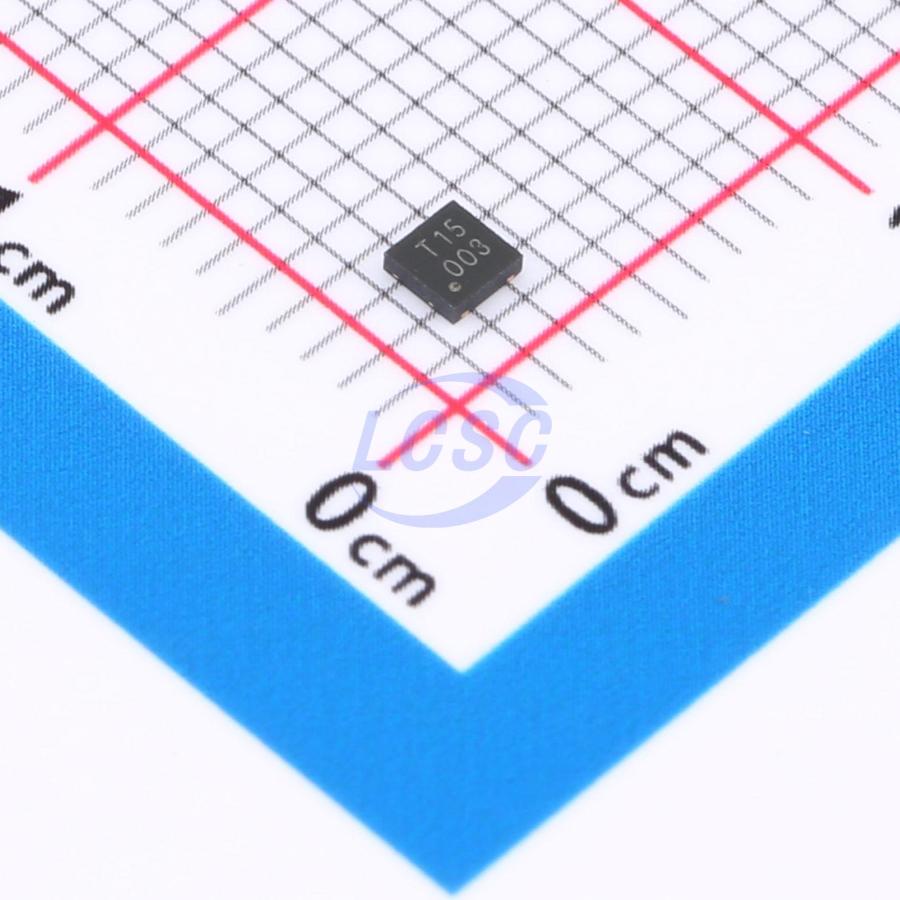

TPTVS15VU-DFN3

29VC Clamp 125A@8/20us Ipp TVS DIODE DFN-3(2x2)

DFN-3(2x2)RoHSActive

TVS DIODE 15VWM 29VC DFN-3(2x2)

Manufacturer: TECH PUBLIC
Manufacturer part #: TPTVS15VU-DFN3
Store part #: C587164
Package / case: DFN-3(2x2)
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,975 in stock

#C587164

Stock & price checked 14 days ago

Quantity	Unit price	Pack price
5+	₹12.37	₹61.85
50+	₹10.07	₹503.50
150+	₹8.92	₹1,338.00
500+	₹8.06	₹4,030.00
3,000+	₹6.30	₹18,900.00
6,000+	₹5.94	₹35,640.00

Quantity (min 5, multiples of 5)

5 × ₹12.37

₹61.85

excl. GST

₹72.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPTVS15VU-DFN3

₹61.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 29V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 125A@8/20us
Peak Pulse Power Dissipation (Ppp): 4kW@8/20us
Voltage - Breakdown: 17.5V
Number of Channels: 1
type: TVS
Reverse Leakage Current (Ir): 1uA
Reverse Stand-Off Voltage (Vrwm): 15V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.096 g

Overview

Applications

Fast-charge battery chargers
Power management system
Cellular Handsets and Accessories
Personal Digital Assistants
Notebooks and Handhelds
Portable Instrumentation
Digital Cameras
Peripherals

Key features

Protects one data or power line
Low operating voltage: 15V
Ultra low clamping voltage
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 125 A (8/20μs)
RoHS Compliant
