TECH PUBLICDatasheet (PDF)

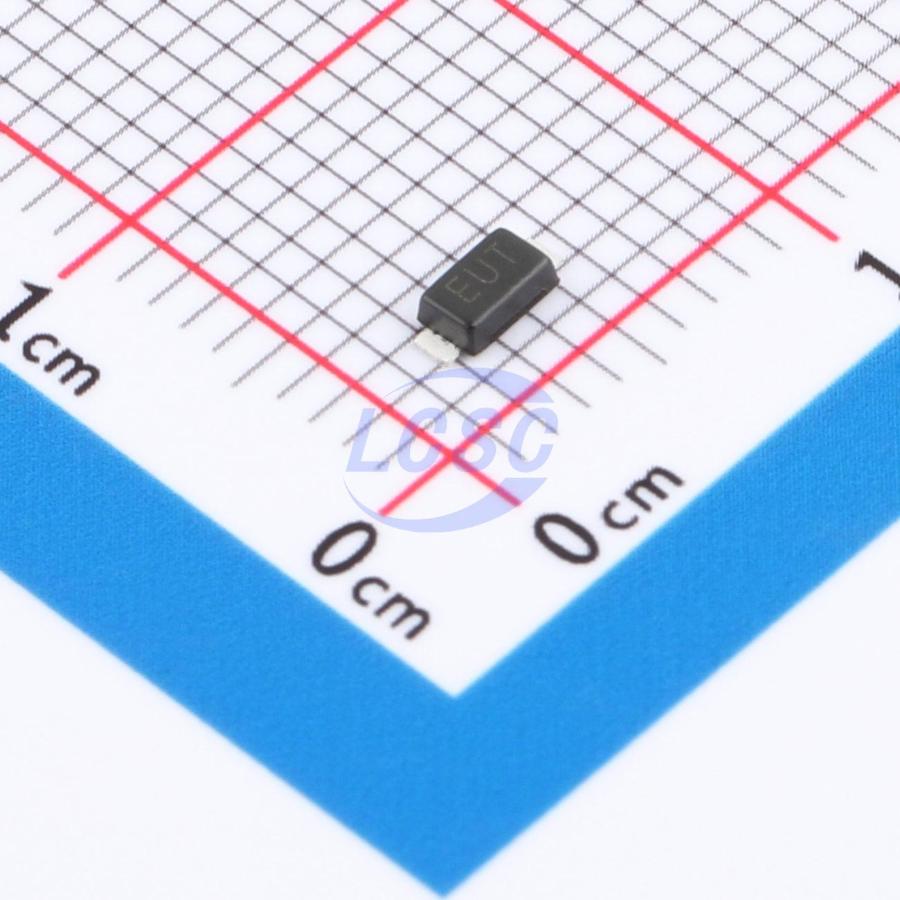

TPTVS18B1F
32V 180A@8/20us 5.7kW@8/20us 19V Bidirectional 18V SOD-123FL TVS Diodes
SOD-123FLRoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTVS18B1F
- Store part #
- C52145931
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,820 in stock
#C52145931
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.96 | ₹79.60 |
| 100+ | ₹6.27 | ₹627.00 |
| 300+ | ₹5.41 | ₹1,623.00 |
| 3,000+ | ₹4.78 | ₹14,340.00 |
| 6,000+ | ₹4.27 | ₹25,620.00 |
| 9,000+ | ₹4.01 | ₹36,090.00 |
10 × ₹7.96
₹79.60
excl. GST
₹93.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTVS18B1F
₹79.60 for 10 + GST
Specifications
- Clamping Voltage
- 32V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 180A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 5.7kW@8/20us
- Voltage - Breakdown
- 19V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
Key features
- Surface mount application
- Excellent clamping capability
- Compliant with IEC-61000-4-2, ESD immunity 30KV (air discharge), 30KV (contact discharge)
