TECH PUBLICDatasheet (PDF)

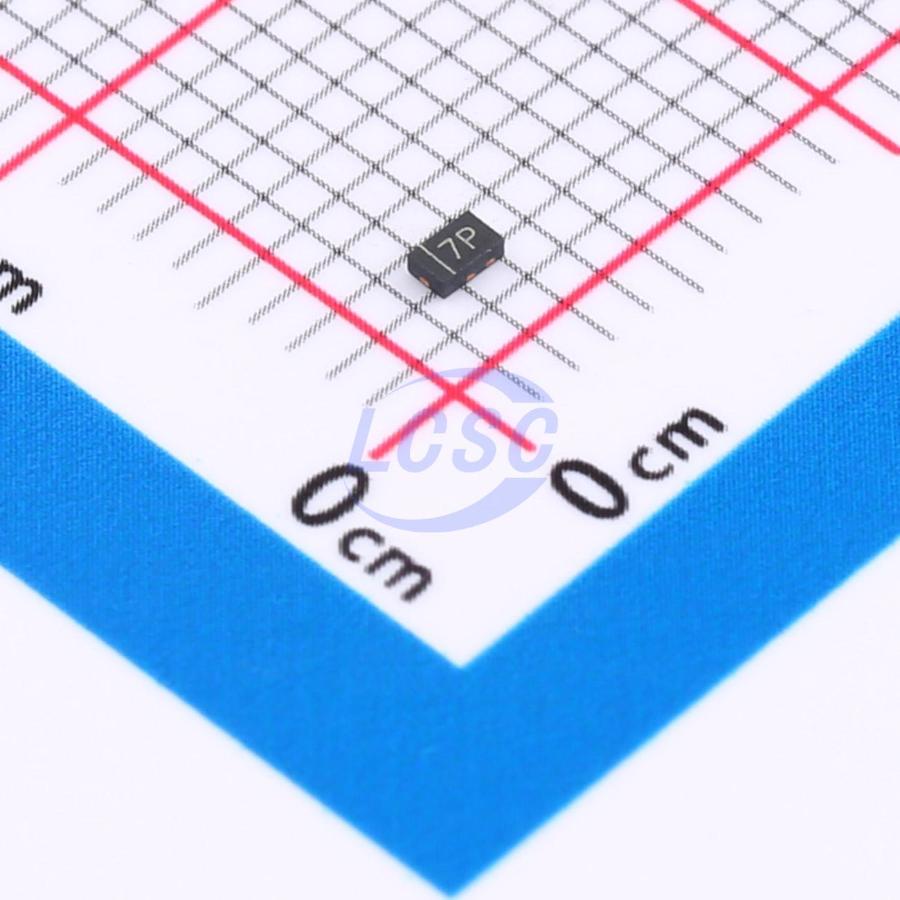

TPTVSHC2EN7VU
18VC Clamp 120A@8/20us Ipp DFN1610-2
DFN1610-2RoHSActive
7VWM 18VC DFN1610-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTVSHC2EN7VU
- Store part #
- C42436646
- Package / case
- DFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,760 in stock
#C42436646
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.23 | ₹82.30 |
| 100+ | ₹6.50 | ₹650.00 |
| 300+ | ₹5.64 | ₹1,692.00 |
| 3,000+ | ₹5.00 | ₹15,000.00 |
| 6,000+ | ₹4.48 | ₹26,880.00 |
| 9,000+ | ₹4.22 | ₹37,980.00 |
10 × ₹8.23
₹82.30
excl. GST
₹97.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTVSHC2EN7VU
₹82.30 for 10 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 120A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 2kW@8/20us
- Voltage - Breakdown
- 8V
- Number of Channels
- 1
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Applications
- Power Management
- Industrial Application
- Power Supply Protection
- Many other portable devices
Key features
- Ultra small package: 1.6x1.0x0.5mm
- Protects one data or power line
- Ultra low leakage: nA level
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 120A (5/50ns)
- IEC61000-4-5 (Lightning) 120A (8/20μs)
