TECH PUBLIC

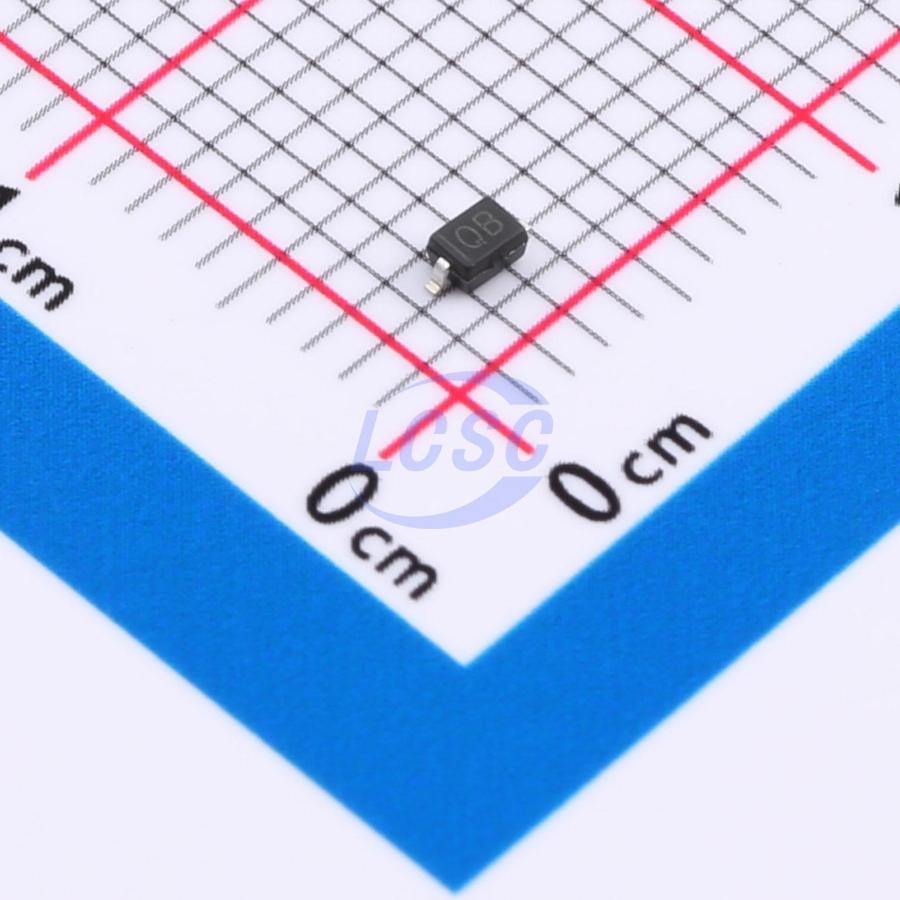

TPTVSHC3D12VU

30VC Clamp 46A@8/20us Ipp TVS DIODE SOD-323

SOD-323RoHSActive

TVS DIODE 12VWM 30VC SOD-323

Manufacturer: TECH PUBLIC
Manufacturer part #: TPTVSHC3D12VU
Store part #: C16197292
Package / case: SOD-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,210 in stock

#C16197292

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹9.96	₹99.60
100+	₹7.89	₹789.00
300+	₹6.84	₹2,052.00
3,000+	₹6.06	₹18,180.00
6,000+	₹5.42	₹32,520.00
9,000+	₹5.11	₹45,990.00

Quantity (min 10, multiples of 10)

10 × ₹9.96

₹99.60

excl. GST

₹117.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPTVSHC3D12VU

₹99.60 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 30V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 46A@8/20us
Peak Pulse Power Dissipation (Ppp): 1.3kW@8/20us
Voltage - Breakdown: 17V
Number of Channels: 1
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 1uA
Reverse Stand-Off Voltage (Vrwm): 12V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.027 g

Overview

Applications

Mobile Phones and Accessories
Battery Protection
USB VBus Power Line Protection
Hand Held Portable Applications

Key features

1300W peak pulse power (8/20μs)
Protects one data or power line
Ultra low leakage: nA level
Operating voltage: 12V
Ultra low clamping voltage
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-5 (Lightning) 46A (8/20μs)
RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	TPE1281MU#C16197294TECH PUBLIC · SOD-323	TECH PUBLIC	SOD-323	900	₹9.88 · 900 in stock	View
