TECH PUBLICDatasheet (PDF)

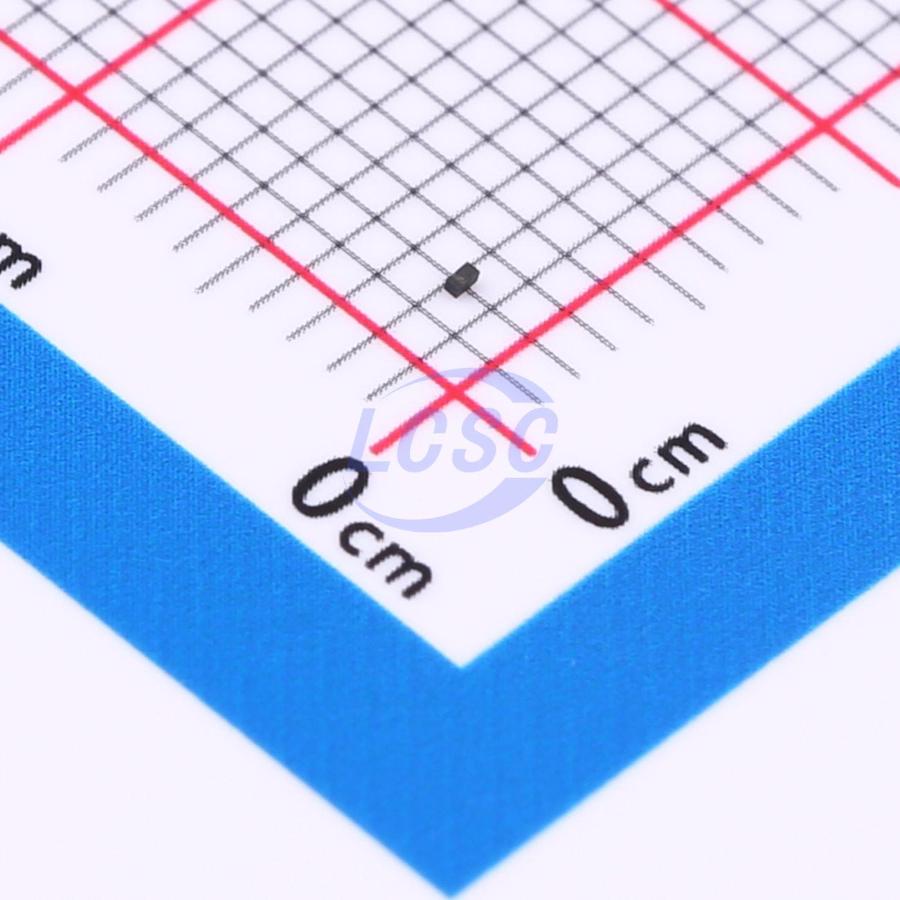

TPUCLAMP0501Z
20VC Clamp 3A@8/20us Ipp DFN0603-2
DFN0603-2RoHSActive
5VWM 20VC DFN0603-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPUCLAMP0501Z
- Store part #
- C46472766
- Package / case
- DFN0603-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,500 in stock
#C46472766
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.40 | ₹108.00 |
| 200+ | ₹4.23 | ₹846.00 |
| 600+ | ₹3.60 | ₹2,160.00 |
| 2,000+ | ₹3.20 | ₹6,400.00 |
| 15,000+ | ₹2.87 | ₹43,050.00 |
| 30,000+ | ₹2.69 | ₹80,700.00 |
20 × ₹5.40
₹108.00
excl. GST
₹127.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
TPUCLAMP0501Z
₹108.00 for 20 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 70W@8/20us
- Voltage - Breakdown
- 7.5V
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.006 g
Overview
Applications
- Cellular Handsets & Accessories
- Digital Visual Interface (DVl)
- Display Port
- MDDI Ports
- USB Ports
Key features
- Ultra small package: 0.6x0.3x0.3mm
- Ultra low capacitance: 0.5pF typical
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±15kV
- IEC61000-4-5 (Lightning) 3A (8/20μs)
- RoHS Compliant
- Lead Finish: NiPdAu
