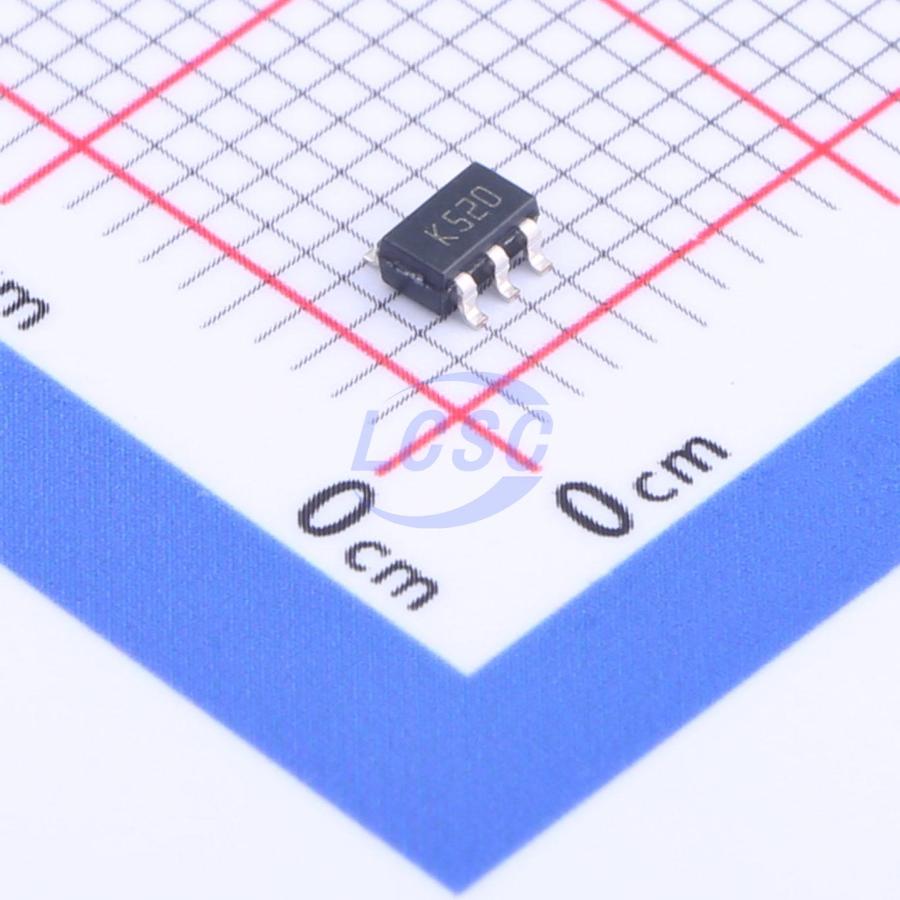

TS3021ILT
1 90uA 6mV Rail-to-rail input SOT-23-5 Comparators RoHS
Rail-to-rail 1.8 V high-speed comparator
- Manufacturer
- ST
- Manufacturer part #
- TS3021ILT
- Store part #
- C1509142
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,074 in stock
#C1509142
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.86 | ₹85.86 |
| 10+ | ₹69.39 | ₹693.90 |
| 30+ | ₹61.15 | ₹1,834.50 |
| 100+ | ₹52.91 | ₹5,291.00 |
| 500+ | ₹47.92 | ₹23,960.00 |
| 1,000+ | ₹45.33 | ₹45,330.00 |
1 × ₹85.86
₹85.86
excl. GST
₹101.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS3021ILT
₹85.86 for 1 + GST
Specifications
- Ib - Input Bias Current
- 160nA
- Number of Channels
- 1
- Propagation Delay(tpd)
- 105ns
- Common Mode Rejection Ratio(CMRR)
- 79dB
- Quiescent Current(Iq)
- 90uA
- Vos - Input Offset Voltage
- 6mV
- Output Mode
- CMOS
- Rail to Rail
- Rail-to-rail input
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 1.8V~5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
The TS3021 single comparator features highspeed response time with rail-to-rail inputs. With a supply voltage specified from 2 to 5 V, this comparator can operate over a wide temperature range: -40 °C to 125 °C. The TS3021 comparator offers micropower consumption as low as a few tens of microamperes thus providing an excellent ratio of power consumption current versus response time. The TS3021 includes push-pull outputs and is available in small packages (SOT23-5 and SC70-5).
Applications
- Telecom
- Instrumentation
- Signal conditioning
- High-speed sampling systems
- Portable communication systems
Key features
- Propagation delay: 38 ns
- Low current consumption: 73 μA
- Rail-to-rail inputs
- Push-pull outputs
- Supply operation from 1.8 to 5 V
- Wide temperature range: -40 °C to 125 °C
- High ESD tolerance: 5 kV HBM, 300 V MM
- Latch-up immunity: 200 mA
- SMD packages
- Automotive qualification
