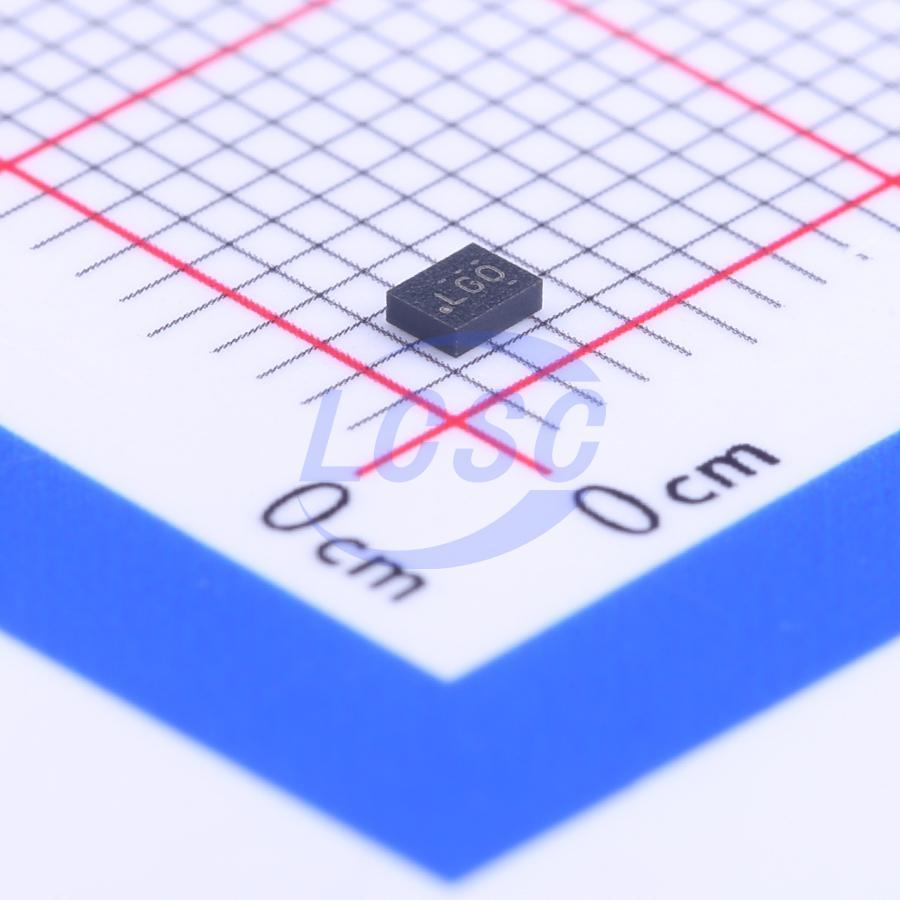

TS3USB221ERSER

2.3V~3.6V 1GHz 6Ω 2 2:1 UQFN-10-EP(1.5x2) Analog Switches - Special Purpose RoHS

UQFN-10-EP(1.5x2)ROHS3 CompliantActive

High-Speed USB2.0(480-Mbps) 1:2 Multiplexer-Demultiplexer Switch With Single Enable and IEC Level 3 ESD Protection

Manufacturer: TI
Manufacturer part #: TS3USB221ERSER
Store part #: C129313
Package / case: UQFN-10-EP(1.5x2)
Category: Analog Switches - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,005 in stock

#C129313

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹49.64	₹248.20
50+	₹39.12	₹1,956.00
150+	₹34.61	₹5,191.50
500+	₹28.99	₹14,495.00
3,000+	₹26.49	₹79,470.00
6,000+	₹24.98	₹1,49,880.00

Quantity (min 5, multiples of 5)

5 × ₹49.64

₹248.20

excl. GST

₹292.88 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS3USB221ERSER

₹248.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Turn-on time: 30ns
Turn-off time: 12ns
Voltage - Supply: 2.3V~3.6V
-3dB Bandwidth: 1GHz
Ron: 6Ω
Number of Channels: 2
Propagation Delay (tpd): 250ps
Switch Circuit: 2:1
Operating Temperature: -40℃~+85℃
Features: Bidirectional analog channel
Con: 7pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.07 g

Overview

The TS3USB221E is a high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os. The wide bandwidth (1 GHz) of this switch allows signals to pass with minimum edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. The TS3USB221E is designed for low bit-tobit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps). The TS3USB221E integrates ESD protection cells on all pins, is available in a SON package (3 mm × 3 mm) as well as in a tiny AO FN package (2 mm × 1.5 mm) and is characterized over the free-air temperature range from -40°C to 85°C.

Applications

Routes Signals for USB 1.0, 1.1, and 2.0
Mobile Phones, Digital Cameras
Notebooks
USB I/O Expansion, MHL 1.0

Key features

VCC Operation of 2.5V to 3.3V
Switch I/Os Accept Signals Up to 5.5V
1.8-V Compatible Control-Pin Inputs
Low-Power Mode When OC Is Disabled (1 μA)
rON = 6 Ω Maximum
ΔrON = 0.2 Ω Typical
Cio(on) = 7 pF Maximum
Low Power Consumption (30 μA Maximum)
ESD Performance Tested Per JESD 22: 7000-V Human Body Model (A114-B, Class II), 1000-V Charged-Device Model (C101)
ESD Performance I/O Port to GND: 12-kV Human Body Model (A114-B, Class II), ±7-kV Contact Discharge (IEC 61000-4-2)
High Bandwidth (1 GHz Typical)
