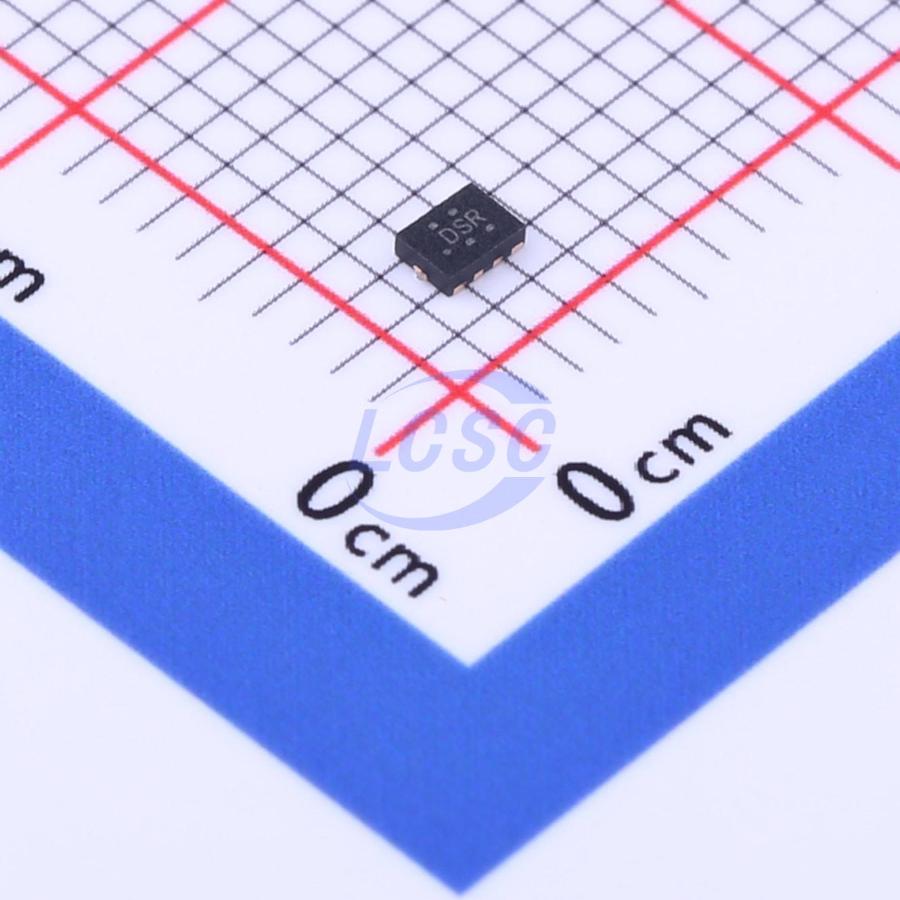

TS3USB3000RSER

The TS3USB3000 device is a double-pole, double throw (DPDT) multiplexer that includes a high-speed Mobile High-Definition Link (MHL) switch and an USB 2.0 High-Speed (480 Mbps) switch in the same package. These configurations allow the system designer to use a common USB or Micro-USB connector for both MHL video signals and USB data. The TS3USB3000 has a VCC range of 2.3 V to 4.8 V and supports overvoltage tolerance (OVT) feature, which allows the I/O pins to withstand overvoltage conditions (up to 5.5 V). The power-off protection feature forces all I/O pins to be in high-impedance mode when power is not present, allowing full isolation of the signal lines under such condition without excessive leakage current. The select pins of TS3USB3000 are compatible with 1.8-V control voltage, allowing them to be directly interfaced with the General-Purpose I/O (GPIO) from a mobile processor. The TS3USB3000 comes with a small 10-pin UQFN package with only 1.5 mm × 2 mm in size, which makes it a perfect candidate to be used in mobile applications.

Applications

• Smartphones
• Tablets
• Mobile Portable Instrumentation
• Digital Still Cameras

Key features

• VCC Range 2.3 V to 4.8 V
• Mobile Hi-Definition Link (MHL) Switch:
• Bandwidth (–3 dB): 6.1 GHz
• RON (Typical): 5.7 Ω
• CON (Typical): 1.6 pF
• USB Switch:
• Bandwidth (–3 dB): 6.1 GHz
• RON (Typical): 4.6 Ω
• CON (Typical): 1.4 pF
• Current Consumption: 30 μA (Typical)
• Special Features:
• IOFF Protection Prevents Current Leakage in Powered-Down State (VCC and VBUS = 0 V)
• 1.8-V Compatible Control Inputs (SEL, OE)
• Overvoltage Tolerance (OVT) on all I/O Pins up to 5.5 V Without External Components
• Overvoltage Protection When 9-V Short to D+/- Pin
• ESD Performance:
• 3.5 kV Human Body Model (A114B, Class II)
• 1-kV Charged-Device Model (C101)
• 10-Pin UQFN Package (1.5 mm × 2 mm, 0.5-mm Pitch)
