TS3USB3031RMGR

2 Circuit IC SWITCH 1:3 4.5Ω QFN-12L(1.8x1.8)

QFN-12L(1.8x1.8)ROHS3 CompliantActive

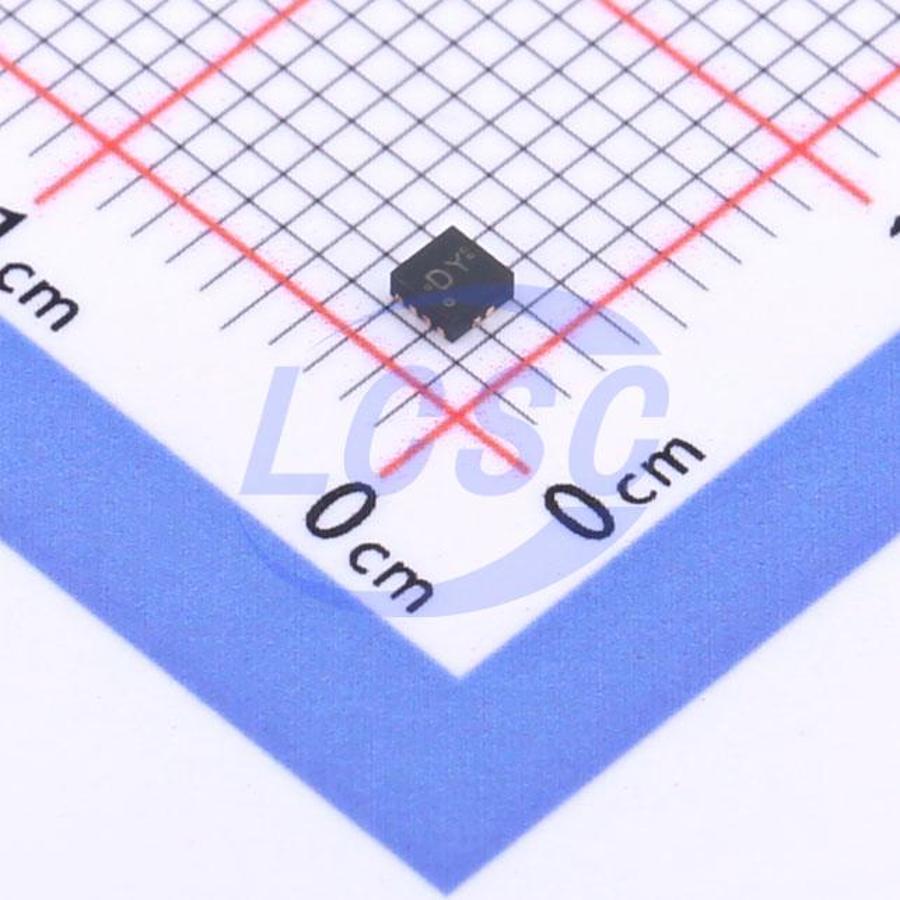

TS3USB3031 Dual-Channel, 1:3, USB2.0 High-Speed (480Mbps) and Mobile High-Definition Link (MHL) or Mobility Display Port (MyDP) Switch

Manufacturer: TI
Manufacturer part #: TS3USB3031RMGR
Store part #: C2652459
Package / case: QFN-12L(1.8x1.8)
Category: Analog Switches - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

887 in stock

#C2652459

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹136.40	₹136.40
10+	₹110.77	₹1,107.70
30+	₹98.18	₹2,945.40
100+	₹85.36	₹8,536.00
500+	₹77.77	₹38,885.00
1,000+	₹73.85	₹73,850.00

Quantity (min 1)

1 × ₹136.40

₹136.40

excl. GST

₹160.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS3USB3031RMGR

₹136.40 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Turn-on time: 100us
Voltage - Supply: 2.5V~4.3V
Turn-off time: 100us
-3dB Bandwidth: 6.5GHz
Number of Channels: 2
Ron: 4.5Ω
Propagation Delay (tpd): 50ps
Switch Circuit: 3:1
Operating Temperature: -40℃~+85℃
Features: Fault protection;Power-off isolation;Level shifting
Con: 1pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.001 g

Overview

The TS3USB3031 is a dual-channel, 1:3 multiplexer that includes a high-speed Mobile High-Definition Link (MHL), Mobile DisplayPort (MyDP) switch, and USB 2.0 High-Speed (480 Mbps) switch. These configurations allow system designers to use a common USB or Micro-USB connector for MHL/MyDP signals and two sets of USB data, saving board space and eliminating the need for multiple connectors. The MHL/MyDP path supports the latest MHL 3.0 revision specification. The TS3USB3031 operates over a VCC range of 2.5V to 4.3V and supports an Overvoltage Tolerance (OVT) feature, allowing I/O pins to withstand overvoltage conditions up to 5.5V. The power-off protection feature forces all I/O pins into high-impedance mode when unpowered, enabling complete isolation of signal lines under such conditions without generating excessive leakage current. The select pins of the TS3USB3031 are compatible with 1.8V control voltages, allowing direct connection to the GPIO of mobile processors without additional voltage level translation circuitry. The TS3USB3031 is available in a compact 12-pin VQFN package measuring only 1.8mm × 1.8mm, making it an ideal choice for mobile applications.

Applications

Smartphones
Tablets
Mobile phones
Portable instruments
Digital cameras
USB 2.0 MHL

Key features

VCC range: 2.5V to 4.3V
Mobile High-definition Link (MHL) or Mobile DisplayPort (MyDP) switch: Bandwidth (-3dB): -6.5GHz, RON (typ): 5.5Ω, C0N (typ): 1.3pF
USB switch (2 groups): Bandwidth (-3dB): 6.5GHz, RON (typ): 4.5Ω, C0N (typ): 1pF, Current consumption: 28μA (typ)
IOFF protection prevents leakage current in power-off state (VCC = 0V)
1.8V compatible control input (SEL)
Overvoltage tolerance (OVT) up to 5.5V on all I/O pins, no external components required
ESD performance: 2kV Human Body Model (A114B, Class II), 1kV Charged Device Model (C101)
Package: 12-pin VQFN (1.8mm × 1.8mm, 0.5mm pitch)
