STDatasheet (PDF)

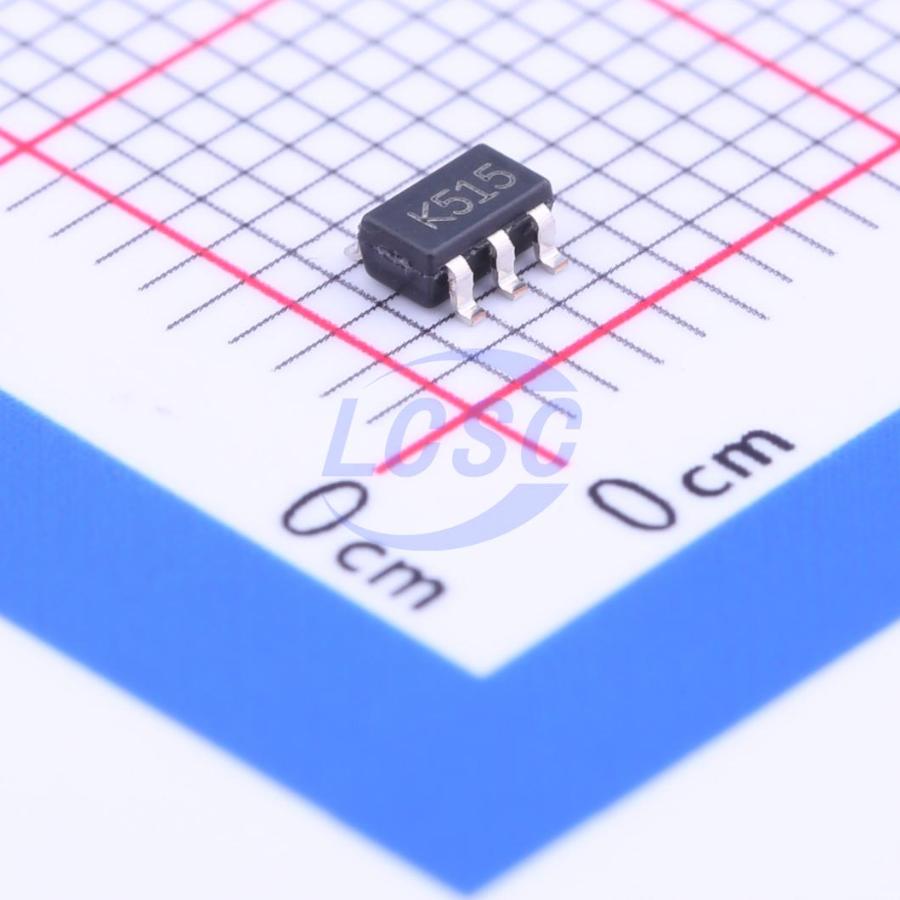

TS7211AILT
1 6uA 10mV Rail-to-rail input SOT-23-5 Comparators RoHS
SOT-23-5ROHS3 CompliantActive
Single BiCMOS Rail-to-Rail uPower Comparator
- Manufacturer
- ST
- Manufacturer part #
- TS7211AILT
- Store part #
- C222102
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,905 in stock
#C222102
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.95 | ₹129.95 |
| 10+ | ₹110.18 | ₹1,101.80 |
| 30+ | ₹100.40 | ₹3,012.00 |
| 100+ | ₹90.84 | ₹9,084.00 |
| 500+ | ₹84.96 | ₹42,480.00 |
| 1,000+ | ₹81.93 | ₹81,930.00 |
1 × ₹129.95
₹129.95
excl. GST
₹153.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS7211AILT
₹129.95 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 1pA
- Output Mode
- CMOS
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 6uV/℃
- Output Type
- Push-pull
- Propagation Delay(tpd)
- 600ns
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Quiescent Current(Iq)
- 6uA
- Vos - Input Offset Voltage
- 10mV
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 2.7V~10V
- Response Time (tr)
- 0.5us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.084 g
Overview
The TS7211 is a micropower comparator featuring rail to rail input performance in a tiny SOT23-5 package. This comparator is ideally suited to space and weight critical applications. It is fully specified at 2.7V, 5V and 10V operations over the industrial temperature range (-40/+85°C). The TS7211 features a push-pull output stage. The speed to power ratio makes this device ultra versatile for a wide range of applications.
Applications
- Battery powered systems
- Notebooks and PDAs
- PCMCIA cards
- Cellulars and mobile communication
- Alarm and security systems
- Replacement of amplifiers used in comparator configuration with better performances
Key features
- RAIL TO RAIL INPUTS
- PUSH-PULL OUTPUT
- SUPPLY OPERATION FROM 2.7V TO 10V
- TYPICAL SUPPLY CURRENT: 6μA @ 5V
- RESPONSE TIME OF 0.5μs AT 5V
- LOW INPUT CURRENT
- ESD PROTECTION : 2KV (HBM) 200V (MM)
- AVAILABLE IN TINY SOT23-5 PACKAGE
