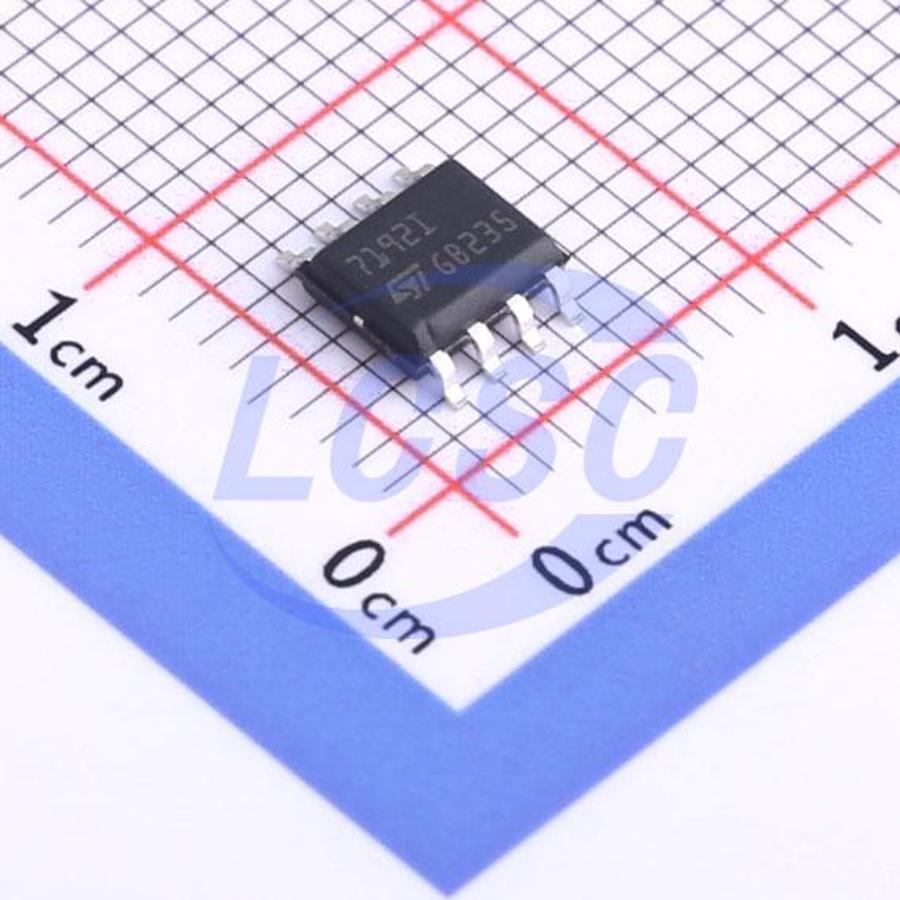

TSB7192IDT

The TSB7191, TSB7191A, TSB7192 and the TSB7192A 22 MHz bandwidth amplifier feature rail-to-rail input and output, which is guaranteed to operate from +2.7 V to +36 V single supply as well as from ±1.35 V to ±18 V dual supplies. These amplifiers have the advantage of offering a large span of supply voltage and an excellent input offset voltage of 300 μV maximum at 25 °C. The combination of wide bandwidth, slew rate, low noise, rail-to-rail capability and precision makes the TSB7191, TSB7191A, TSB7192 and the TSB7192A useful in a wide variety of applications such as: filters, power supply and motor control, actuator driving, hall effect sensors and resistive transducers.

Applications

• High-side and low-side current sensing
• Hall effect sensors
• Data acquisition and instrumentation
• Test and measurement equipments
• Motor control
• Industrial process control
• Strain gauge

Key features

• Rail-to-rail input and output
• Low offset voltage: 300 μV maximum
• Wide supply voltage range: 2.7 V to 36 V
• Gain bandwidth product: 22 MHz
• Slew rate: 12 V/µs
• Low noise: 12 nV/√Hz
• Stable with gain +10/-9
• Integrated EMI filter
• 2 kV HBM ESD tolerance
• Extended temperature range: -40 °C to +125 °C
• Automotive-grade available
