TX4101

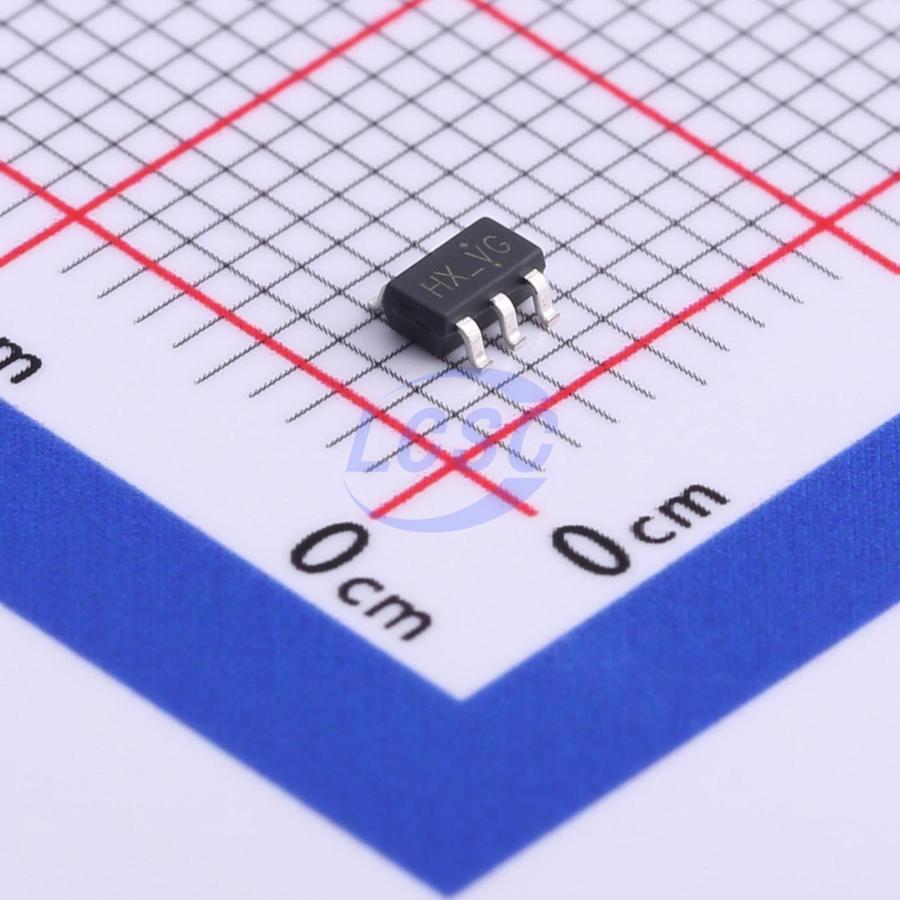

Buck Switching Regulator IC Adjustable 0.6V~5.5V 1 Output SOT-23-5

SOT-23-5ROHS CompliantActive

Synchronous Rectification Buck DC-DC Power Conversion Chip

Manufacturer: XDS
Manufacturer part #: TX4101
Store part #: C691125
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,550 in stock

#C691125

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹14.75	₹73.75
50+	₹11.62	₹581.00
150+	₹10.05	₹1,507.50
500+	₹8.88	₹4,440.00
3,000+	₹7.89	₹23,670.00
6,000+	₹7.41	₹44,460.00

Quantity (min 5, multiples of 5)

5 × ₹14.75

₹73.75

excl. GST

₹87.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TX4101

₹73.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+85℃@(TA)
Frequency - Switching: 1MHz;1.4MHz
Function: Step-down type
Number of Outputs: 1
Features: Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 700mA
Output Voltage: 600mV~5.5V
Quiescent Current: 200uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.046 g

Overview

TX4101 is a high-efficiency synchronous rectification PWM buck DC-DC converter. Its input voltage range is 2.5V to 5.5V, suitable for single-cell battery-powered applications. The device features 100% duty cycle capability, helping to extend battery life. Quiescent current under no-load conditions is 200uA, dropping to below 1uA during shutdown. The integrated synchronous switch improves efficiency, eliminating the need for an external Schottky diode. The 1.0MHz/1.4MHz switching frequency allows the use of small, thin inductors and ceramic capacitors, enabling a compact solution. The chip is available in a SOT23-5 package.
