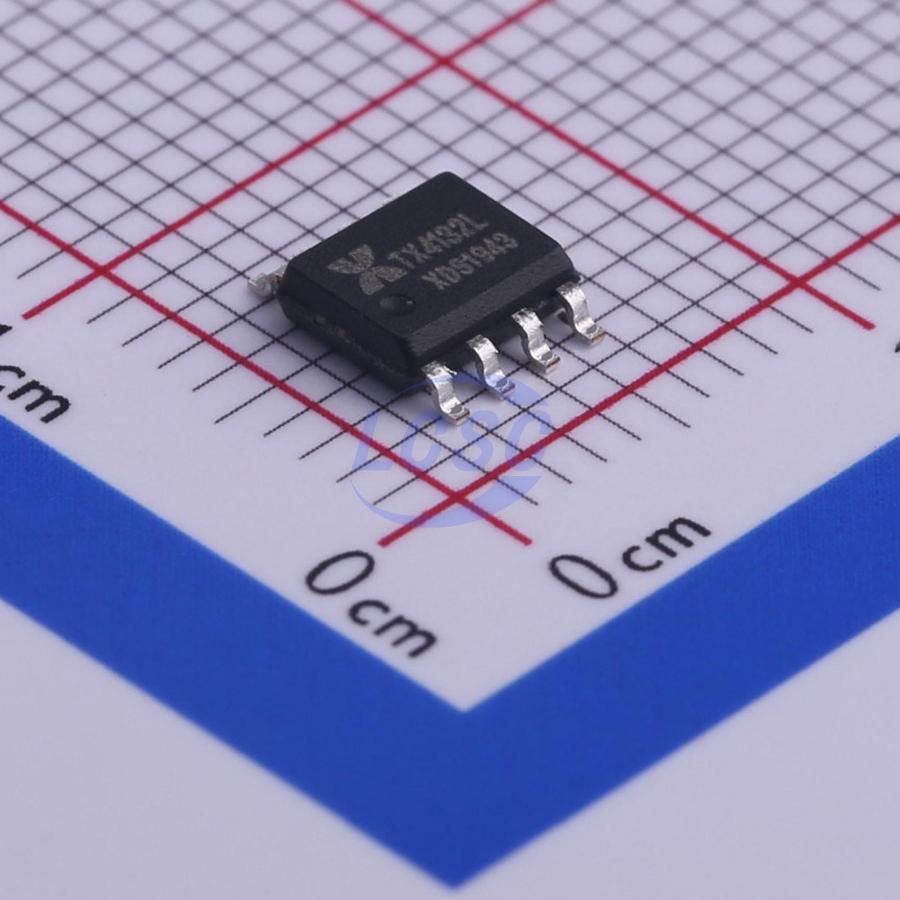

TX4132L
Buck Switching Regulator IC Adjustable 5V~30V 1 Output 3A SOP-8-EP
SOP-8-EPROHS CompliantActive
Wide Input Voltage Buck DC-DC
- Manufacturer
- XDS
- Manufacturer part #
- TX4132L
- Store part #
- C448637
- Package / case
- SOP-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,264 in stock
#C448637
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.62 | ₹70.62 |
| 10+ | ₹56.49 | ₹564.90 |
| 30+ | ₹49.32 | ₹1,479.60 |
| 100+ | ₹42.38 | ₹4,238.00 |
| 500+ | ₹38.68 | ₹19,340.00 |
| 1,000+ | ₹36.50 | ₹36,500.00 |
1 × ₹70.62
₹70.62
excl. GST
₹83.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TX4132L
₹70.62 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 140kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Light load efficient mode;Built-in LDO regulator;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~55V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Output Voltage
- 5V~30V
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.109 g
Overview
TX4132L is a wide-voltage-input synchronous buck DC-DC converter with an integrated 60V/5A power MOSFET, supporting a maximum input voltage of 55V. It features low standby power consumption, high efficiency, low ripple, excellent line regulation and load regulation, and supports high-current output up to 3A or above. It also supports both constant voltage output and constant current output. The device employs a fixed-frequency PWM control scheme with a typical switching frequency of 140KHz, and automatically reduces the switching frequency under light-load conditions to achieve high conversion efficiency. Integrated soft-start, over-temperature protection, output short-circuit protection, and current limiting protection enhance system reliability. Packaged in ESOP8, with the exposed thermal pad connected to the VIN pin.
Applications
- Constant voltage power supply
- Electric vehicles, electric bicycles, electric scooters
- Self-balancing scooters, trucks
Key features
- Wide input voltage range: 8V~55V
- Output voltage adjustable from 5V to 30V
- Constant voltage and constant current output
- Supports 5V/3A output
- Built-in soft start
- High efficiency: up to 96%
- Operating frequency: 140KHz
- Low standby power consumption
- Built-in over-temperature protection
- Built-in output short-circuit protection
