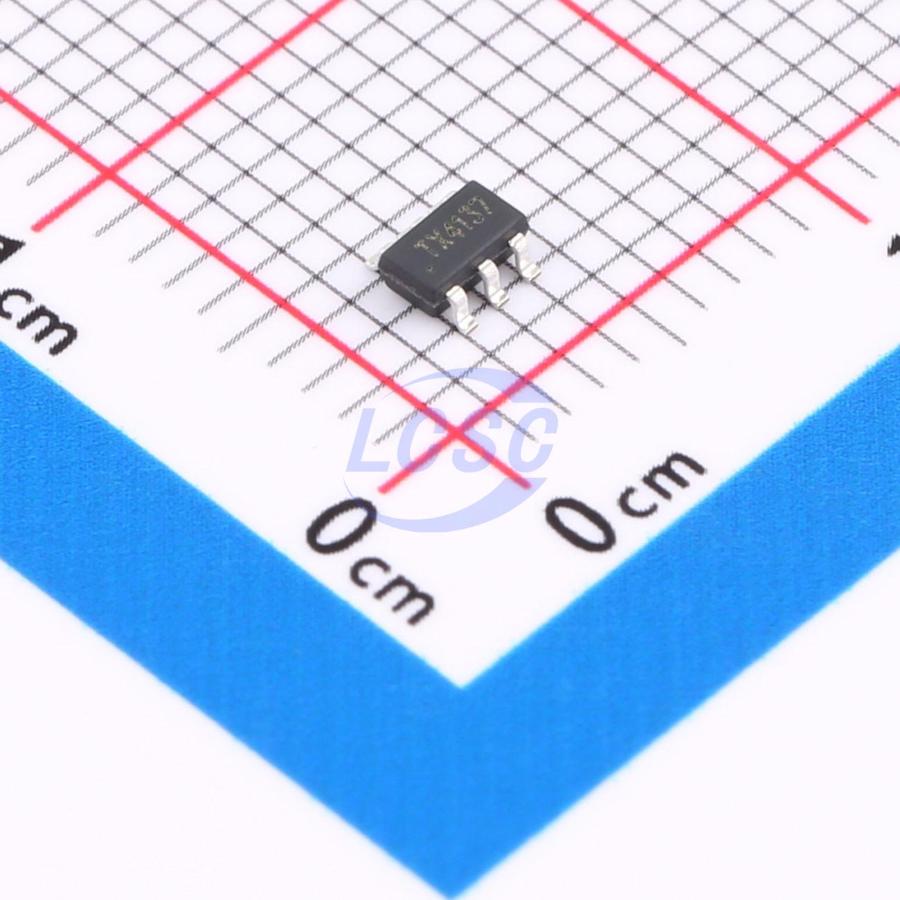

TX4137
Buck Switching Regulator IC Adjustable 1 Output 0.6A SOT-23-6
SOT-23-6ROHS CompliantActive
0.6A, 60V, 1MHz Buck Converter
- Manufacturer
- XDS
- Manufacturer part #
- TX4137
- Store part #
- C691124
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,15,930 in stock
#C691124
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.33 | ₹166.65 |
| 50+ | ₹25.84 | ₹1,292.00 |
| 150+ | ₹22.17 | ₹3,325.50 |
| 500+ | ₹18.92 | ₹9,460.00 |
| 3,000+ | ₹16.56 | ₹49,680.00 |
| 6,000+ | ₹16.03 | ₹96,180.00 |
5 × ₹33.33
₹166.65
excl. GST
₹196.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TX4137
₹166.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Frequency - Switching
- 800kHz~1.2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 5.5V~60V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Quiescent Current
- 700uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
TX4137 is a monolithic step-down switching mode converter with an integrated power MOSFET. The device delivers 0.6A peak output current over a wide 5.5-60V input voltage range with excellent line and load regulation. It operates in PWM current mode, enabling easy loop stabilization and fast transient response. The product integrates protection features including cycle-by-cycle current limiting and thermal shutdown, comes in a SOT23-6 package, and requires minimal external components.
Applications
- Energy meters
- Distributed power systems
- Battery chargers
- Pre-regulators for linear regulators
Key features
- 0.6A peak output current
- 0.9Ω internal power MOSFET
- Capable of starting with large output capacitors
- Stable with low-ESR ceramic capacitor output
- Up to 90% efficiency
- Fixed 500kHz switching frequency
- Thermal shutdown protection
- Cycle-by-cycle overcurrent protection
- Wide input voltage range: 5.5~60V
- SOT23-6 package
