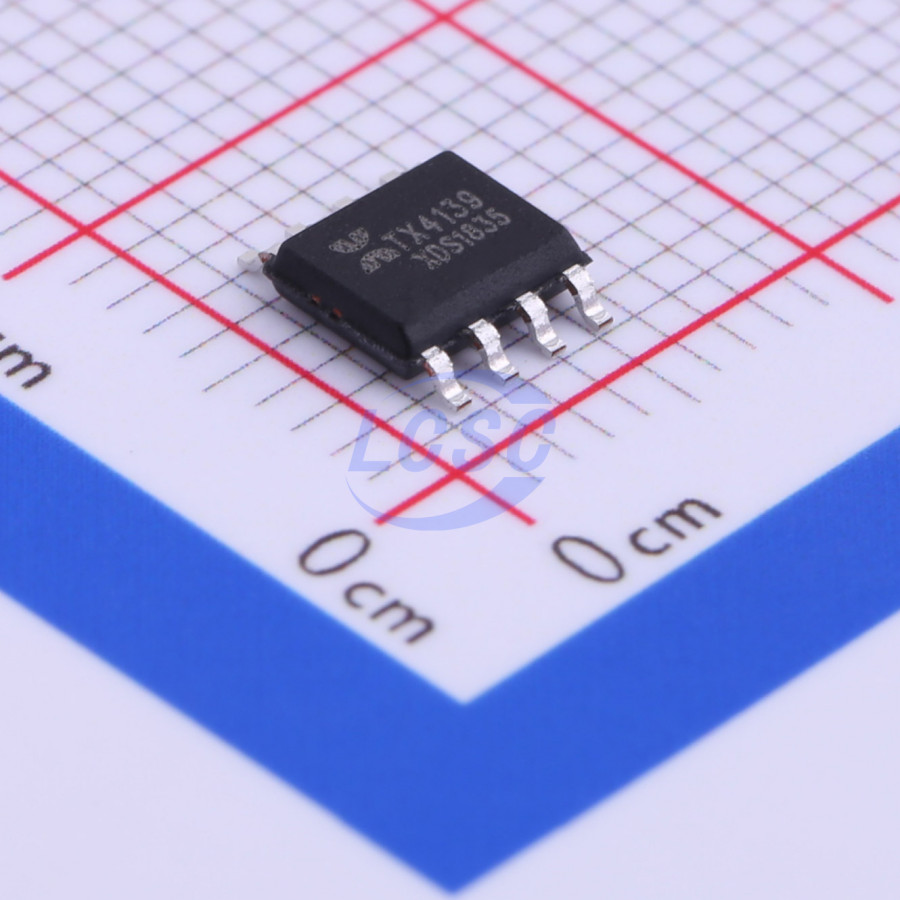

TX4139
200kHz Step-down type Adjustable 800mV~50V 2A SOIC-8-EP Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8-EPROHS CompliantActive
2A, 75V, 200KHz Step-Down Converter
- Manufacturer
- XDS
- Manufacturer part #
- TX4139
- Store part #
- C329266
- Package / case
- SOIC-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,996 in stock
#C329266
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.35 | ₹114.35 |
| 10+ | ₹91.79 | ₹917.90 |
| 30+ | ₹80.61 | ₹2,418.30 |
| 100+ | ₹69.43 | ₹6,943.00 |
| 500+ | ₹56.53 | ₹28,265.00 |
| 1,000+ | ₹53.09 | ₹53,090.00 |
1 × ₹114.35
₹114.35
excl. GST
₹134.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TX4139
₹114.35 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 200kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Light load efficient mode;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~75V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~50V
- Output Current
- 2A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.112 g
Overview
The TX4139 is a monolithic step-down switch mode converter. It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation. The maximum peak current can be programmed by sensing current through an accurate sense resistor. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. The TX4139 requires a minimum number of readily available standard external components. The TX4139 is available in 8-pin ESOIC8 packages.
Applications
- Balance Bike
- ebike
- USB Power Supplies
Key features
- Wide 4.5V to 75V Operating Input Range
- Output Adjustable from 0.8V to 50V
- Light load High Efficiency
- Power Save Mode at light load
- Programmable maximum peak current
- 130mΩ Internal Power MOSFET Switch
- Fixed 200KHz Frequency
- Thermal Shutdown
- Cycle-by-Cycle Over Current Protection
- Available in 8-Pin ESOIC8 Packages
