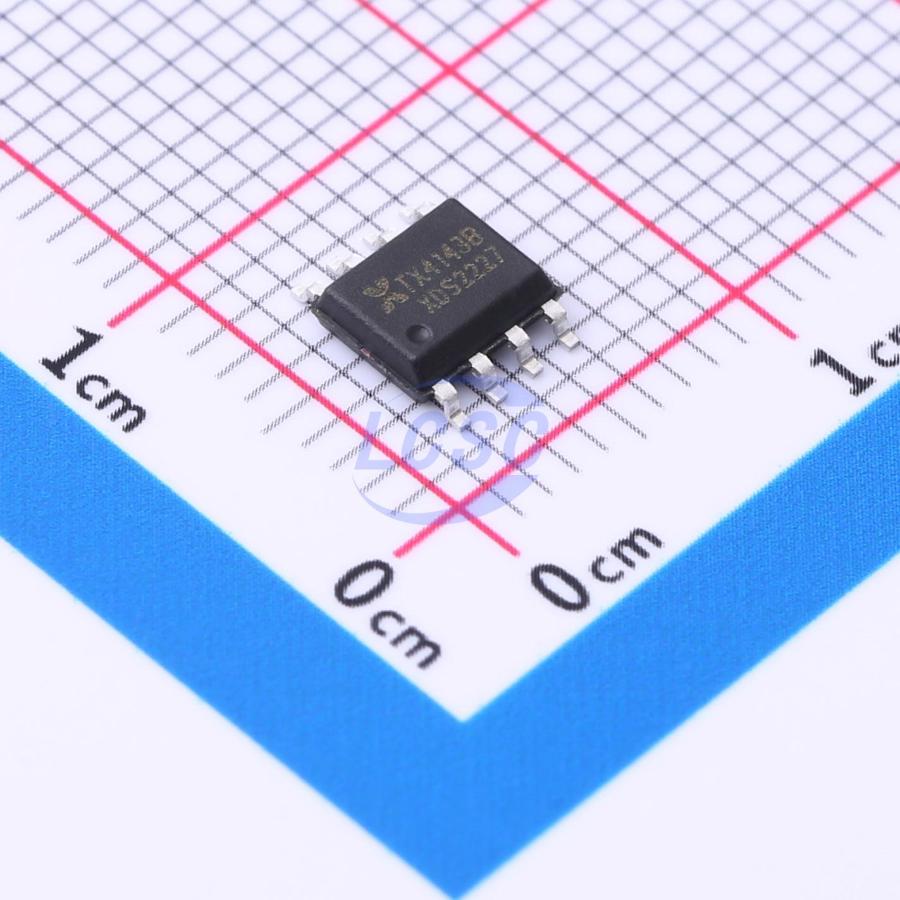

XDS

TX4143B

Buck Switching Regulator IC Adjustable 1 Output 2.5A SOP-8

SOP-8ROHS CompliantActive

2.5A, 40V Buck Converter

Manufacturer: XDS
Manufacturer part #: TX4143B
Store part #: C5121274
Package / case: SOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

58,090 in stock

#C5121274

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹31.66	₹158.30
50+	₹24.86	₹1,243.00
150+	₹21.95	₹3,292.50
500+	₹18.31	₹9,155.00
2,500+	₹16.09	₹40,225.00
4,000+	₹15.11	₹60,440.00

Quantity (min 5, multiples of 5)

5 × ₹31.66

₹158.30

excl. GST

₹186.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

TX4143B

₹158.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Frequency - Switching: 140kHz;450kHz
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Topology: Buck
Output Type: Adjustable
Operating Voltage: 6V~40V
Switch tube (built-in/external): Built-in
Output Current: 2.5A
Quiescent Current: 150uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.19 g

Overview

TX4143B is a monolithic step-down switching mode converter with an integrated power MOSFET. The TX4143B delivers a maximum output current of 2.5 A over a wide input voltage range of 6 - 40V, with excellent line and load regulation. TX4143B operates in PWM current mode, enabling easy loop stabilization and fast transient response. TX4143B provides an external FS pin, allowing the switching frequency to be set via an external resistor. TX4143B integrates protection features including cycle-by-cycle current limiting and thermal shutdown. TX4143B comes in an SOP8 package with minimal external components. TX4143B is a current-mode buck regulator in which the EA output voltage is proportional to the peak inductor current. TX4143B features a built-in 0.6ms soft-start, which prevents output voltage overshoot during startup.
