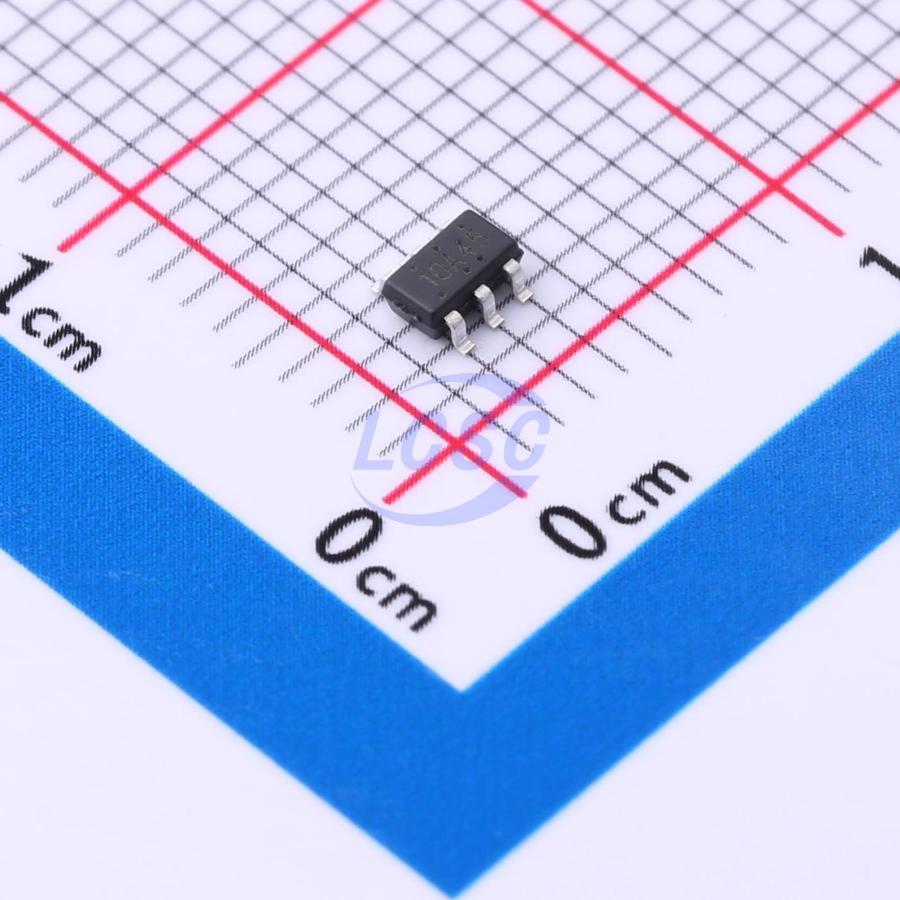

TX4310
1.2MHz boost converter 4.8V~5.2V 250mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
Low-noise, charge pump step-up DC/DC converter
- Manufacturer
- XDS
- Manufacturer part #
- TX4310
- Store part #
- C448639
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,065 in stock
#C448639
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.15 | ₹75.75 |
| 50+ | ₹12.03 | ₹601.50 |
| 150+ | ₹10.46 | ₹1,569.00 |
| 500+ | ₹9.29 | ₹4,645.00 |
| 3,000+ | ₹7.98 | ₹23,940.00 |
| 6,000+ | ₹7.50 | ₹45,000.00 |
5 × ₹15.15
₹75.75
excl. GST
₹89.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TX4310
₹75.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.2MHz
- Function
- boost converter
- Features
- Low ripple / low noise architecture;Soft-start;Output short-circuit protection
- Operating Voltage
- 2.7V~5V
- Output Voltage
- 4.8V~5.2V
- Output Current
- 250mA
- Energy Efficiency
- 83%
- Quiescent Current
- 1.8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
TX4310 is a low-noise, constant-frequency (1.2MHz) switched-capacitor voltage doubler. It generates a regulated output voltage from a 2.7V to 5V input, with output current up to 250mA. The minimal external component count (one fly capacitor and two small bypass capacitors for VIN and VOUT) makes it ideal for small battery-powered applications. The novel charge pump architecture maintains a constant switching frequency down to no load and reduces output and input ripple. The device features over-temperature protection and can sustain a continuous short circuit from VOUT to GND. An integrated soft-start circuit prevents excessive inrush current during startup. The device is available in a SOT23-6 package.
Applications
- Network systems
- Medical devices
- Consumer electronics
- LED drivers
- Voltage regulators, linear regulators
- Power systems
- Charger systems
Key features
- Input voltage: 2.7 - 5V
- Fixed: 5V output
- Output current: 250mA (VIN = 4.5V)
- Shutdown current: <1uA
- Short-circuit protection
- Soft-start
- Inductor-free
- Low noise, constant frequency
