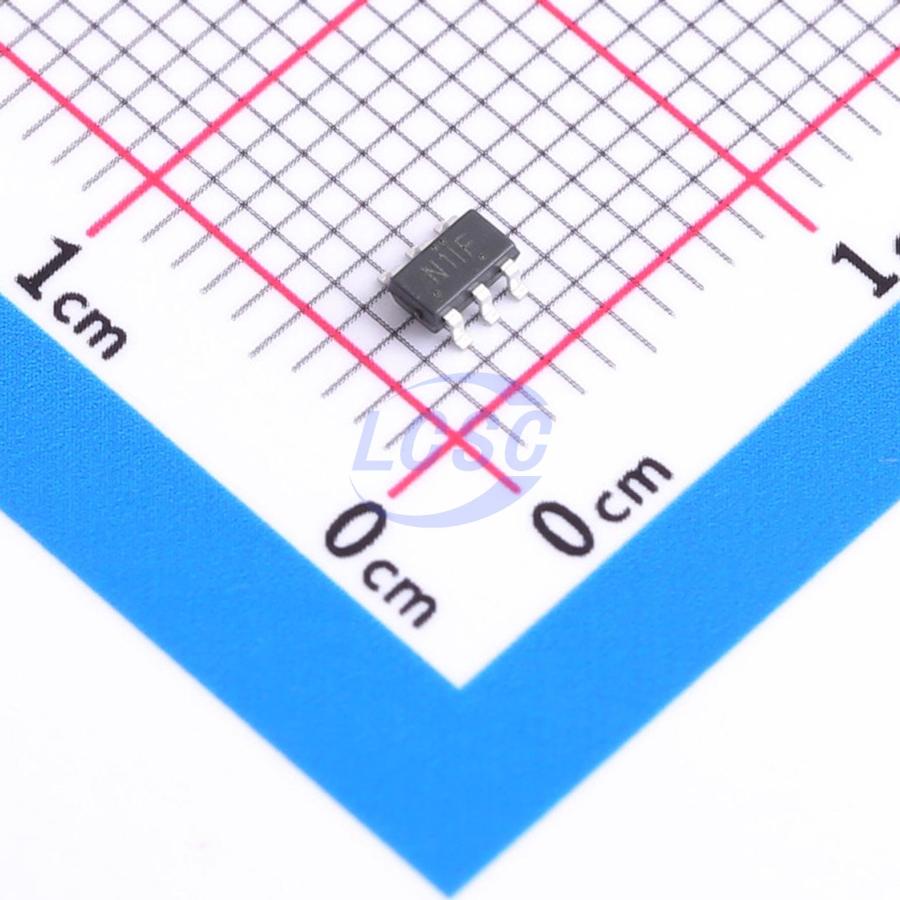

TX4310B
1.2MHz boost converter 300mA 3.17V~3.43V SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
Low-noise, regulated charge pump DC/DC converter
- Manufacturer
- XDS
- Manufacturer part #
- TX4310B
- Store part #
- C448640
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27,490 in stock
#C448640
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.62 | ₹73.10 |
| 50+ | ₹11.59 | ₹579.50 |
| 150+ | ₹10.08 | ₹1,512.00 |
| 500+ | ₹8.94 | ₹4,470.00 |
| 3,000+ | ₹7.71 | ₹23,130.00 |
| 6,000+ | ₹7.26 | ₹43,560.00 |
5 × ₹14.62
₹73.10
excl. GST
₹86.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TX4310B
₹73.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.2MHz
- Function
- boost converter
- Features
- Low ripple / low noise architecture;Output short-circuit protection;Soft-start;Low-power standby;Load disconnect
- Operating Voltage
- 1.8V~5V
- Output Current
- 300mA
- Output Voltage
- 3.17V~3.43V
- Energy Efficiency
- 83%
- Quiescent Current
- 650uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
TX4310B is a low-noise, constant-frequency (1.2MHz) switched-capacitor voltage doubler. TX4310B generates a regulated output voltage from a 1.8V to 5V input. The minimal external component count (one flying capacitor at VDD and VOUT, and two small bypass capacitors) makes it ideal for small battery-powered applications. The charge pump architecture maintains a constant switching frequency to achieve no-load regulated output and reduces output and input ripple. The device features over-temperature protection and can withstand a continuous short circuit from VOUT to GND. An integrated soft-start circuit prevents inrush current during startup. The device is available in a SOT23-6 package.
Applications
- Network systems and medical devices
- White LED backlight for consumer electronics
- Li-ion battery backup power
- 3V to 5V conversion
- Smart card readers
Key features
- Input voltage: 1.8 - 5V
- Fixed: 3.3V output ±4%
- Output current: 250mA (VIN = 3V)
- Shutdown current: <1μA
- Short-circuit protection
- Soft-start
- Inductorless
- Low noise, constant frequency
