UNI-SEMICDatasheet (PDF)
U0058
850kHz Step-down type Adjustable 600mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive

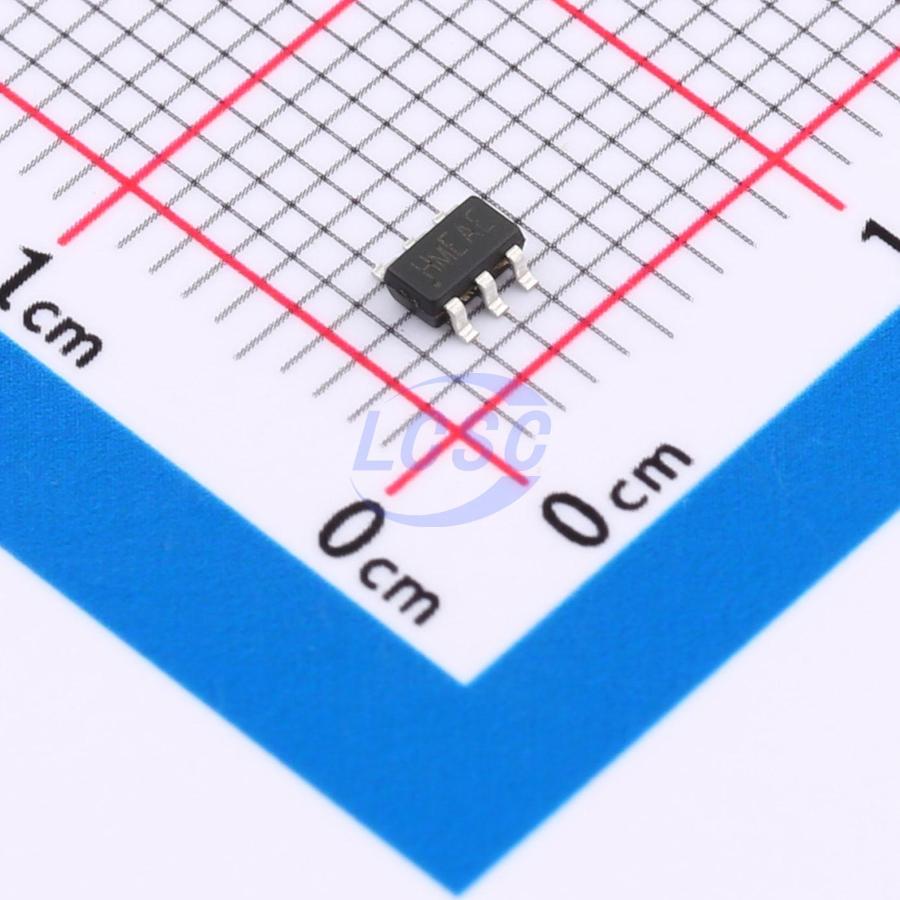

U0058 High-Efficiency Synchronous Step-Down DC/DC Regulator
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U0058
- Store part #
- C19193017
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,890 in stock
#C19193017
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.35 | ₹131.75 |
| 50+ | ₹22.78 | ₹1,139.00 |
| 150+ | ₹21.26 | ₹3,189.00 |
| 500+ | ₹19.36 | ₹9,680.00 |
| 3,000+ | ₹18.51 | ₹55,530.00 |
| 6,000+ | ₹17.99 | ₹1,07,940.00 |
5 × ₹26.35
₹131.75
excl. GST
₹155.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
U0058
₹131.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 850kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~45V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
The U0058 is a high-efficiency synchronous step-down DC/DC regulator. Its wide input voltage range makes it suitable for a broad range of applications, such as power regulation from unregulated power supplies. The device employs internal switches with low RDS(ON) (typical 500mΩ/300mΩ) to achieve maximum efficiency (typical 92%). PSM mode is supported, with a fixed operating frequency of 850kHz, allowing the use of small external components while maintaining low output voltage ripple. With overvoltage protection, this IC can withstand input voltages up to 55V. The U0058 supports 600mA continuous output current and features a 0.8V nominal feedback voltage. Additional features include thermal shutdown, input voltage UVLO, and gate drive UVLO. The U0058 is available in a thin SOT23-6 package.
Applications
- Battery-powered devices
- Portable media players
- Industrial distributed power applications
- Portable handheld instruments
Key features
- Wide 4.5V~45V operating input voltage range
- Withstand voltage: 55V
- 600mA continuous output current
- 850kHz switching frequency
- Short-circuit protection with foldback mode
- Built-in overcurrent limiting
- Built-in overvoltage protection
- PSM mode for high efficiency at light load
- Internal soft-start
- 500mΩ/300mΩ low RDS(ON) internal power MOSFET
- Output voltage adjustable from 0.8V
- No Schottky diode required
- Integrated internal compensation
- Thermal shutdown
- Available in SOT23-6 package
- -40℃ ~ +85℃ temperature range
