TIDatasheet (PDF)

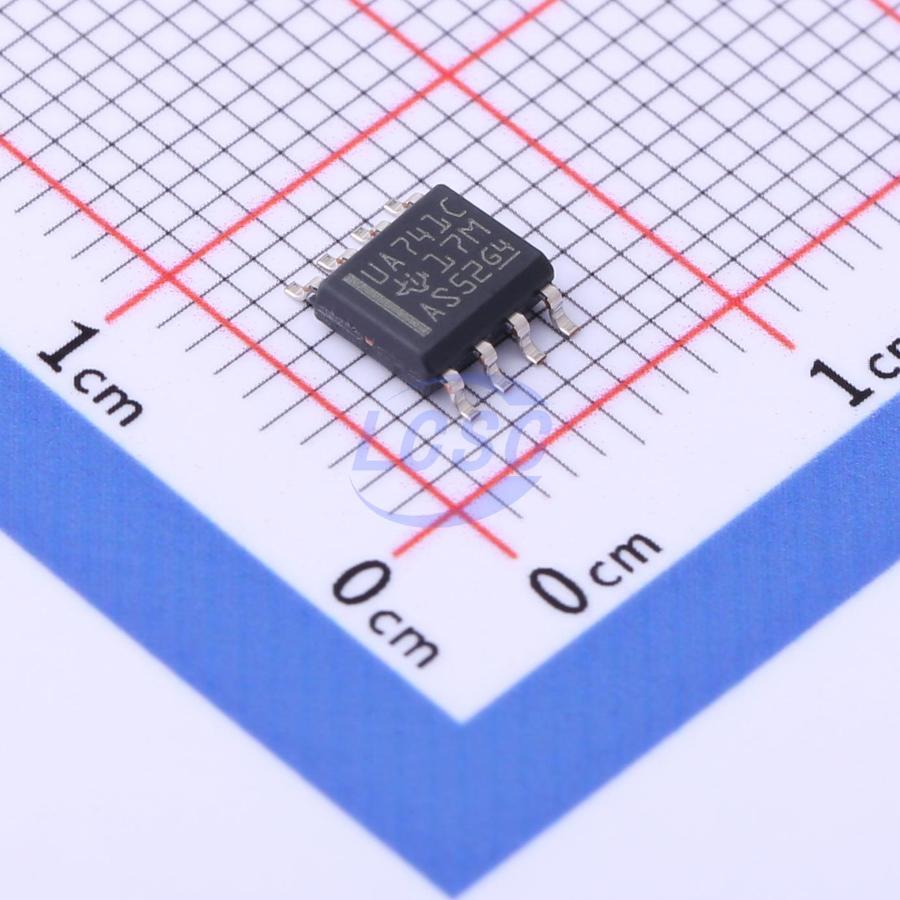

UA741CDR
Standard (General Purpose) Amplifier 1 Circuit SOIC-8
SOIC-8ROHS3 CompliantActive
General-purpose operational amplifier
- Manufacturer
- TI
- Manufacturer part #
- UA741CDR
- Store part #
- C2057458
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,130 in stock
#C2057458
Stock & price checked 17 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.26 | ₹186.30 |
| 50+ | ₹29.25 | ₹1,462.50 |
| 150+ | ₹25.35 | ₹3,802.50 |
| 1,000+ | ₹21.86 | ₹21,860.00 |
| 2,000+ | ₹20.90 | ₹41,800.00 |
| 5,000+ | ₹20.32 | ₹1,01,600.00 |
5 × ₹37.26
₹186.30
excl. GST
₹219.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
UA741CDR
₹186.30 for 5 + GST
Specifications
- Output Current
- 25mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 20nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 80nA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Quiescent Current
- 1.7mA
- Features
- Built-in compensation
- Dual Supply
- -15V~-5V;5V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.115 g
Overview
The µA741 device is a general-purpose operational amplifier with offset voltage nulling capability. This amplifier features a high common-mode input voltage range and no latch-up, making it an ideal choice for voltage follower applications. The device has short-circuit protection, and internal frequency compensation ensures stability without the need for external components. A low-value potentiometer can be connected between the offset voltage nulling inputs to null the offset voltage. The µA7410 device is rated for operation over a temperature range of 0°C to 70°C.
Applications
- DVD recorders and players
- Professional audio mixers
Key features
- Short-circuit protection
- Offset voltage nulling capability
- Wide common-mode and differential voltage range
- No frequency compensation required
- Latch-up free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UA741CDTR(XBLW)#C22451409XBLW · SOP-8 | XBLW | SOP-8 | 2,700 | ₹16.52 · 2,700 in stock | View |
