TECH PUBLICDatasheet (PDF)

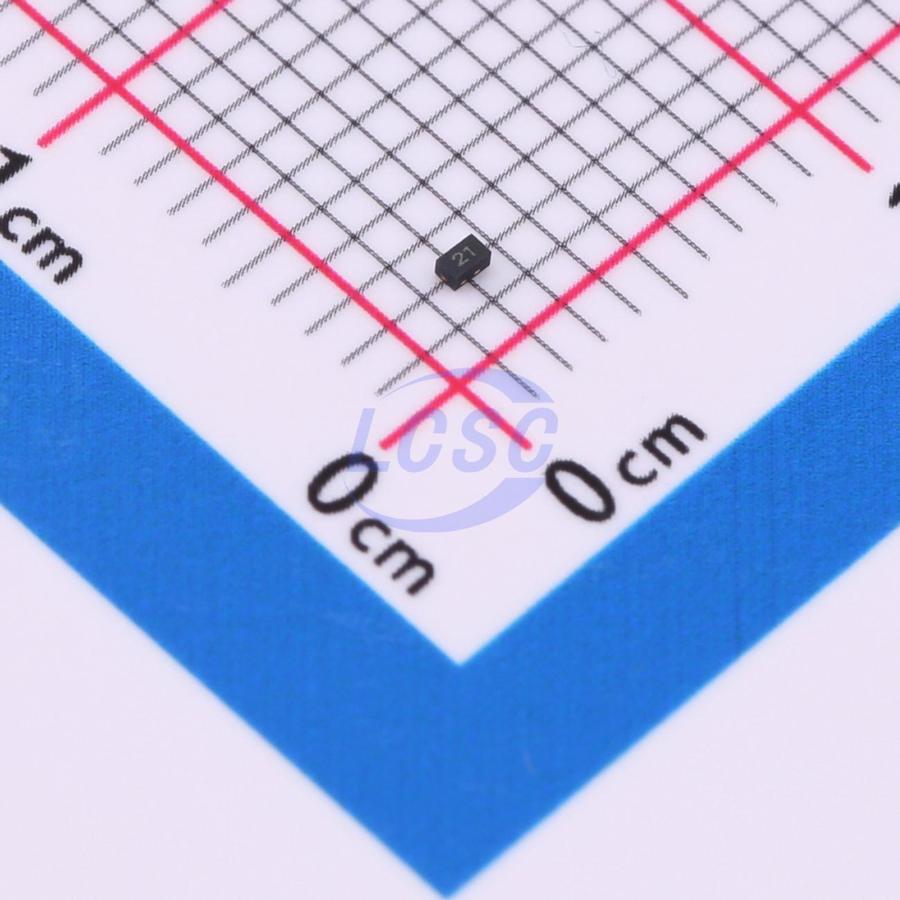

UAD8C05L01
15VC Clamp 3.5A@8/20us Ipp DFN1006-2
DFN1006-2RoHSActive
5VWM 15VC DFN1006-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- UAD8C05L01
- Store part #
- C20617292
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,540 in stock
#C20617292
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.97 | ₹79.40 |
| 200+ | ₹3.08 | ₹616.00 |
| 600+ | ₹2.59 | ₹1,554.00 |
| 2,000+ | ₹2.30 | ₹4,600.00 |
| 10,000+ | ₹2.05 | ₹20,500.00 |
| 20,000+ | ₹1.92 | ₹38,400.00 |
20 × ₹3.97
₹79.40
excl. GST
₹93.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
UAD8C05L01
₹79.40 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 70W@8/20us
- Voltage - Breakdown
- 7.5V
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.009 g
Overview
Applications
- Cellular Handsets & Accessories
- Digital Visual Interface (Dvl)
- Display Port
- MDDI Ports
- USB Ports
Key features
- Ultra small package: 1.0x0.6x0.5mm
- Ultra low capacitance: 0.3pF typical
- Ultra low leakage: nA level
- Low operating voltage: ±5V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- IEC61000-4-5 (Lightning) 3.5A (8/20μs)
- RoHS Compliant
- Lead Finish: NiPdAu
