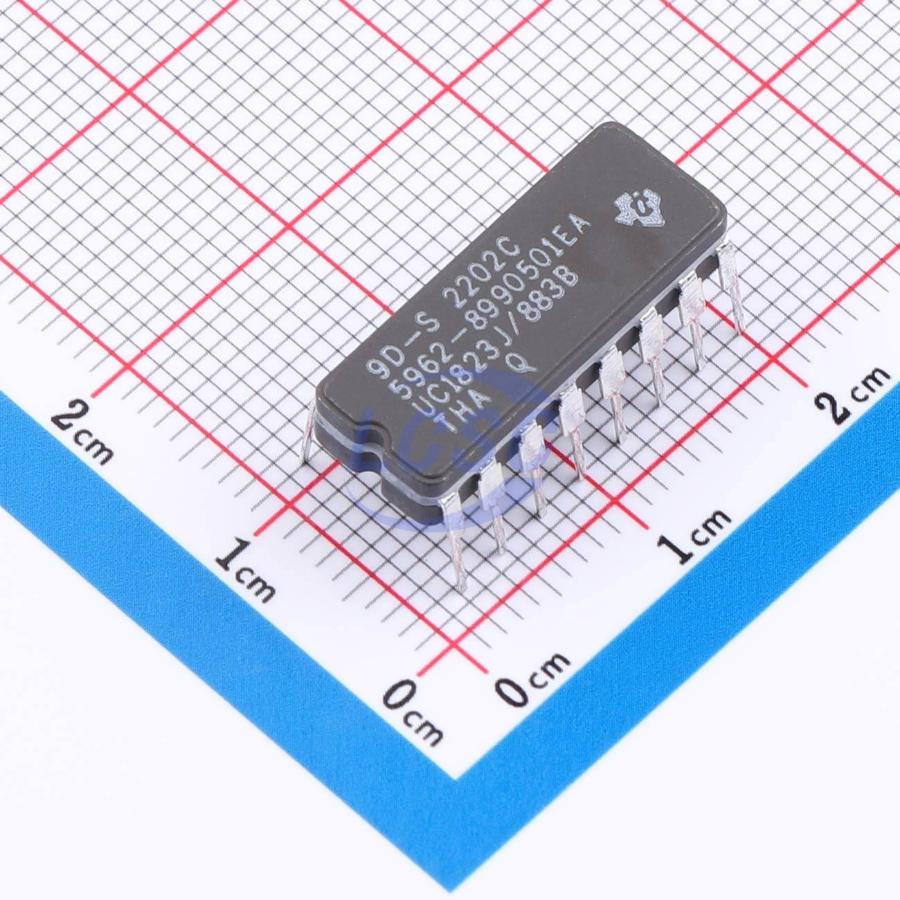

UC1823J883B

The UC1823 family of PWM control iCs is optimized for high frequency switched mode power supply applications. Particular care was given to minimizing propagation delays through the comparators and logic circuitry while maximizing bandwidth and slew rate of the error amplifier. This controller is designed for use in either current - mode or voltage - mode systems with the capability for input voltage feed - forward. Protection circuitry includes a current limit comparator, a TTL compatible shutdown port, and a soft start pin which will double as a maximum duty cycle clamp. The logic is fully latched to provide jitter free operation and prohibit multiple pulses at the output. An under - voltage lockout section with 800mV of hysteresis assures low start up current. During under - voltage lockout, the output is high impedance. The current limit reference (pin 11) is a DC input voltage to the current limit comparator. These devices feature a totem pole output designed to source and sink high peak currents from capacitive loads, such as the gate of a power MOSFET. The on state is defined as a high level.

Key features

• Compatible with Voltage or Current - Mode Topologies
• Practical Operation @ Switching Frequencies to 1.0MHz
• 50ns Propagation Delay to Output
• High Current Totem Pole Output (1.5A peak)
• Wide Bandwidth Error Amplifier
• Fully Latched Logic with Double Pulse Suppression
• Pulse - by - Pulse Current Limiting
• Soft Star/Max. Duty Cycle Control
• Under - Voltage Lockout with Hysteresis
• Low Start Up Current (1.1mA)
• Trimmed Bandgap Reference (5.1V±1%)
