XBLWDatasheet (PDF)

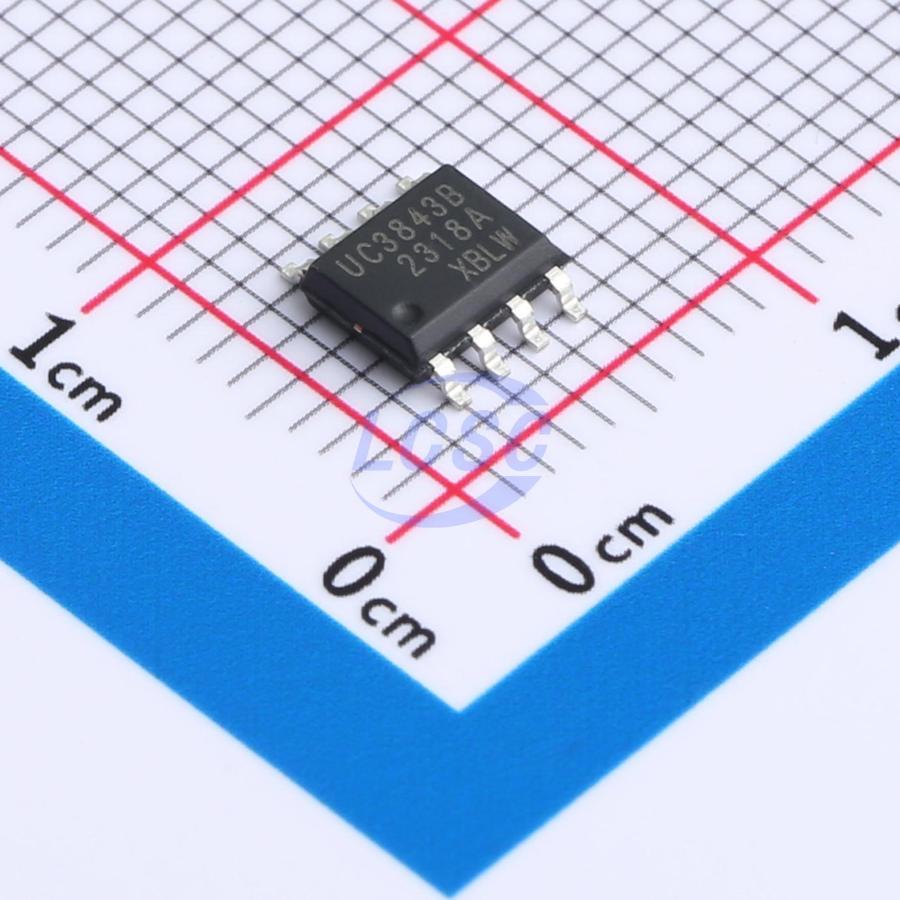

UC3843BDTR(XBLW)
52kHz SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
Current Mode Pulse-width Controller
- Manufacturer
- XBLW
- Manufacturer part #
- UC3843BDTR(XBLW)
- Store part #
- C18723586
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
72,620 in stock
#C18723586
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.47 | ₹67.35 |
| 50+ | ₹10.35 | ₹517.50 |
| 150+ | ₹8.78 | ₹1,317.00 |
| 500+ | ₹7.62 | ₹3,810.00 |
| 2,500+ | ₹6.68 | ₹16,700.00 |
| 5,000+ | ₹6.22 | ₹31,100.00 |
5 × ₹13.47
₹67.35
excl. GST
₹79.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UC3843BDTR(XBLW)
₹67.35 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃@(TA)
- Number of Outputs
- 1
- Frequency - Switching
- 52kHz
- Features
- External compensation;Overcurrent Protection
- Switch tube (built-in/external)
- External
- Quiescent Current
- 12mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.193 g
Overview
The UC3843 is a fixed frequency current mode PWM controllers. It is specifically designed for Off- Line and DC- DC converter applications. This integrated circuits feature a temperature compensated reference, high gain error amplifier, current sense comparator, and a high Push- pull output ideally suited for driving a power MOSFET. Also included are protective features consisting of input and reference undervoltage lockouts each with hysteresis, allowing deadtimes to be programmed, and a latch for single pulse metering. This device is available in SOP8 package and DIP8 package.
Applications
- Switching regulators of any polarity
- Transformer- coupled DC- DC converters
Key features
- Automatic Feed Forward Compensation
- Low Startup and Operating Current (<0.5mA)
- Undervoltage Lockout with Hysteresis
- Maximum Duty Cycle Control
- Operating Frequency: 500kHz
