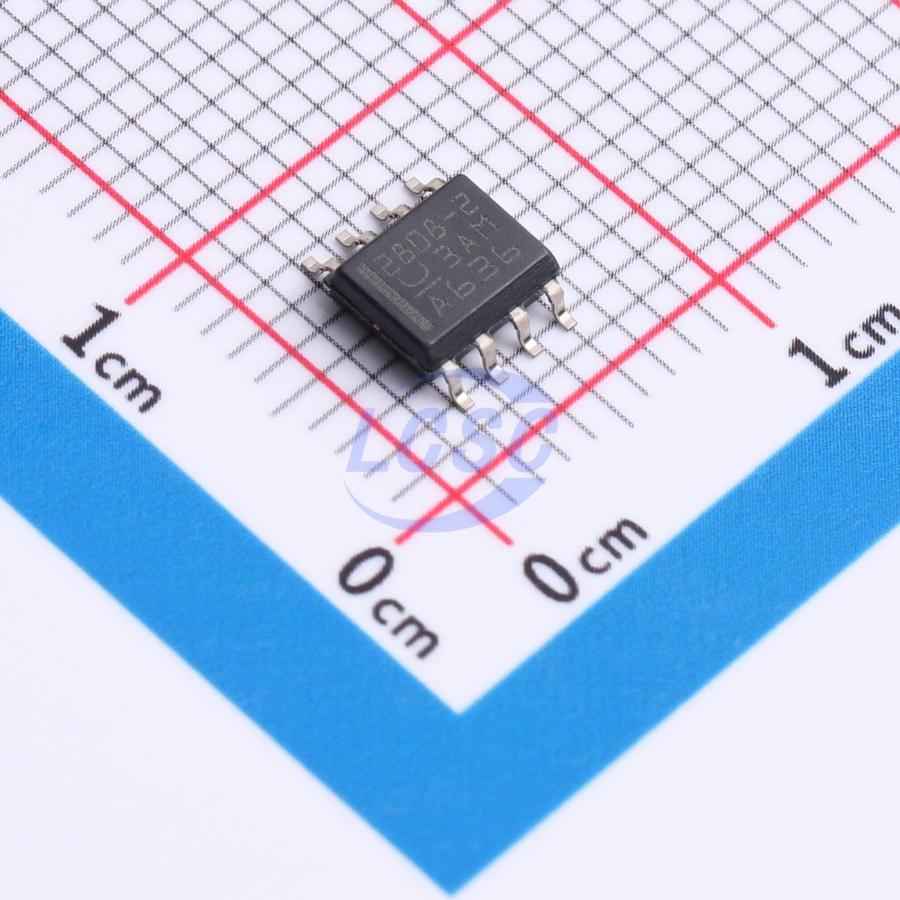

UCC2808D-2

194kHz SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS

SOIC-8ROHS CompliantActive

Low Power Current Mode Push-Pull PWM

Manufacturer: TI
Manufacturer part #: UCC2808D-2
Store part #: C1529939
Package / case: SOIC-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

213 in stock

#C1529939

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
1+	₹670.62	₹670.62
10+	₹596.02	₹5,960.20
30+	₹558.08	₹16,742.40
75+	₹506.92	₹38,019.00
525+	₹488.70	₹2,56,567.50
975+	₹480.90	₹4,68,877.50

Quantity (min 1)

1 × ₹670.62

₹670.62

excl. GST

₹791.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 75 per tube

UCC2808D-2

₹670.62 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 194kHz
Pd - Power Dissipation: 650mW
Features: Under-voltage lockout
Topology: Push-Pull
Duty Cycle(Max): 49%
Feedback System: Secondary-Side Feedback
Operating Voltage: 5V~14V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 75 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.175 g

Overview

The UCCx808-x is a family of BiCMOS push-pull, high-speed, low-power, pulse-width modulators. The UCCx808 contains all of the control and drive circuitry required for offline or DC-to-DC fixed frequency current-mode switching power supplies with minimal external parts count. The UCCx808-x dual output drive stages are arranged in a push-pull configuration. Both outputs switch at half the oscillator frequency using a toggle flip-flop. The dead time between the two outputs is typically 60 ns to 200 ns depending on the values of the timing capacitor and resistors, thus limiting each output stage duty cycle to less than 50%.

Applications

Server and Desktop Power Supplies
Telecom Power Supplies
DC-DC Converters
Switched-Mode Power Supplies

Key features

Dual Output Drive Stages in Push-Pull Configuration
130-μA Typical Starting Current
1-mA Typical Run Current
Operation to 1-MHz
Internal Soft-Start
On-Chip Error Amplifier With 2-MHz Gain Bandwidth Product
On-Chip VDD Clamping
Output Drive Stages Capable Of 500-mA Peak Source Current, 1-A Peak Sink Current
