VISHAYDatasheet (PDF)

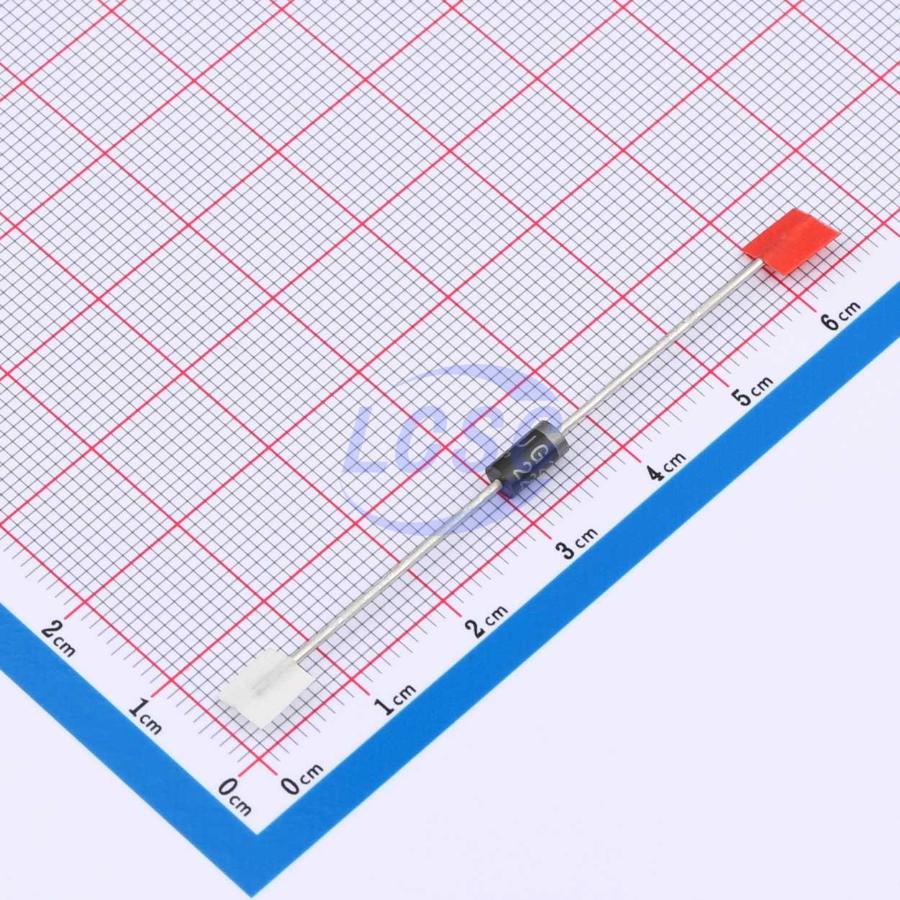

UG2B-E3/54
25ns 1 Independent 100V 950mV@2A 2A DO-204AC(DO-15) Single Diodes RoHS
DO-204AC(DO-15)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- UG2B-E3/54
- Store part #
- C17301691
- Package / case
- DO-204AC(DO-15)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C17301691
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.32 | ₹89.32 |
| 10+ | ₹71.28 | ₹712.80 |
| 30+ | ₹62.15 | ₹1,864.50 |
| 100+ | ₹53.25 | ₹5,325.00 |
| 500+ | ₹48.02 | ₹24,010.00 |
| 1,000+ | ₹45.21 | ₹45,210.00 |
1 × ₹89.32
₹89.32
excl. GST
₹105.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
UG2B-E3/54
₹89.32 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 25ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - Forward(Vf@If)
- 950mV@2A
- Reverse Leakage Current (Ir)
- 5uA@100V
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EGP20G-E3/54#C17491649VISHAY · DO-204AC(DO-15) | VISHAY | DO-204AC(DO-15) | 830 | ₹44.44 · 830 in stock | View |
| UG2DH#C17686908Taiwan Semiconductor · DO-204AC(DO-15) | Taiwan Semiconductor | DO-204AC(DO-15) | On request | ₹15.66 · 0 in stock | View | |
| SF24G A0G#C17526801Taiwan Semiconductor · DO-204AC(DO-15) | Taiwan Semiconductor | DO-204AC(DO-15) | On request | ₹25.10 · 0 in stock | View | |
| SF24GH#C17550866Taiwan Semiconductor · DO-204AC(DO-15) | Taiwan Semiconductor | DO-204AC(DO-15) | On request | ₹13.89 · 0 in stock | View | |
| EGP20B-E3/54#C17367594VISHAY · DO-204AC(DO-15) | VISHAY | DO-204AC(DO-15) | On request | ₹100.01 · 0 in stock | View | |
