VBsemi ElecDatasheet (PDF)

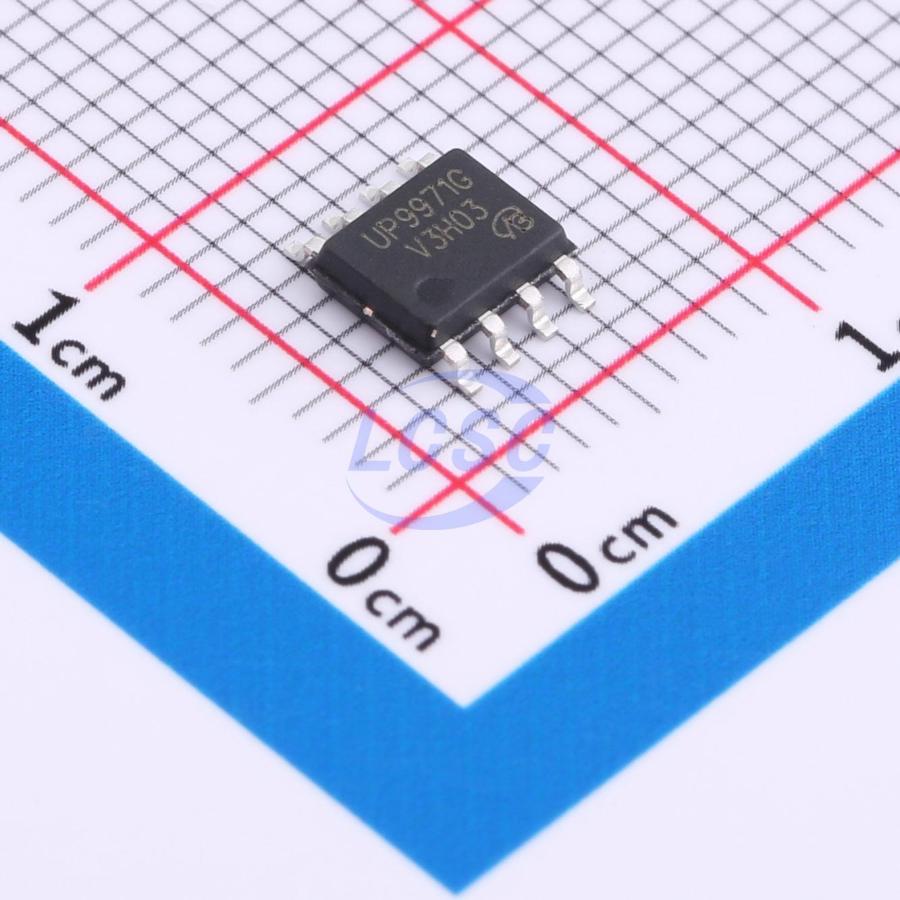

UP9971G-S08-R-VB
60V 7A 4W 28mΩ@10V 2 N-Channel N-Channel SOP-8 Single FETs, MOSFETs RoHS
SOP-8ROHS CompliantActive
MOSFET 2N-CH 60V 7A SOP-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- UP9971G-S08-R-VB
- Store part #
- C7569072
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C7569072
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.13 | ₹106.13 |
| 10+ | ₹91.06 | ₹910.60 |
| 30+ | ₹83.53 | ₹2,505.90 |
| 100+ | ₹75.99 | ₹7,599.00 |
| 500+ | ₹52.32 | ₹26,160.00 |
| 1,000+ | ₹50.17 | ₹50,170.00 |
1 × ₹106.13
₹106.13
excl. GST
₹125.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
UP9971G-S08-R-VB
₹106.13 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 110pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 750pF
- Pd - Power Dissipation
- 4W
- Reverse Transfer Capacitance (Crss)
- 62pF
- RDS(on)
- 28mΩ@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 11.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.245 g
Overview
Applications
- Load Switch
- Notebook PC
- Desktop PC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
