STDatasheet (PDF)

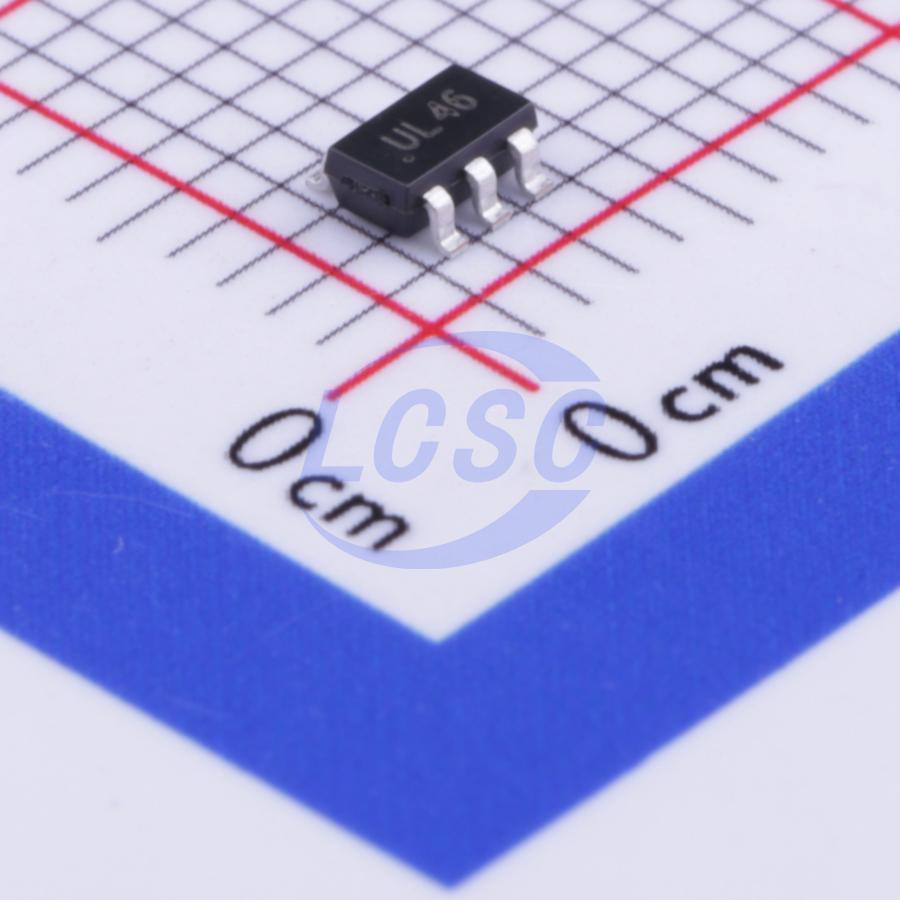

USBLC6-4SC6
17VC Clamp 5A Ipp ESD DIODE SOT-23-6L
PopularSOT-23-6LROHS3 CompliantActive
ESD DIODE 5.25VWM 17VC SOT-23-6L
- Manufacturer
- ST
- Manufacturer part #
- USBLC6-4SC6
- Store part #
- C111212
- Package / case
- SOT-23-6L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,975 in stock
#C111212
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.46 | ₹182.30 |
| 50+ | ₹28.99 | ₹1,449.50 |
| 150+ | ₹25.79 | ₹3,868.50 |
| 500+ | ₹21.79 | ₹10,895.00 |
| 3,000+ | ₹20.02 | ₹60,060.00 |
| 6,000+ | ₹18.95 | ₹1,13,700.00 |
5 × ₹36.46
₹182.30
excl. GST
₹215.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
USBLC6-4SC6
₹182.30 for 5 + GST
Specifications
- Clamping Voltage
- 17V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 5A
- Peak Pulse Power Dissipation (Ppp)
- 130W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 10V
- type
- ESD
- Reverse Leakage Current (Ir)
- 10nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.25V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
The USBLC6-4 is a monolithic application specific device dedicated to ESD protection of high speed interfaces, such as USB 2.0, Ethernet links and video lines. Its very low line capacitance secures a high level of signal integrity without compromising in protecting sensitive chips against the most stringent characterized ESD strikes.
Applications
- USB 2.0 ports up to 480 Mb/s (high speed) Backwards compatible with USB 1.1 low and full speed
- Ethernet port: 10/100 Mb/s
- SIM card protection
- Video line protection
- Portable electronics
Key features
- 4 data-line protection
- Protects VBUS
- Very low capacitance: 3 pF typ.
- Peak pulse power (8/20 μs): 130 W typ.
- SOT23-6L package RoHS compliant
