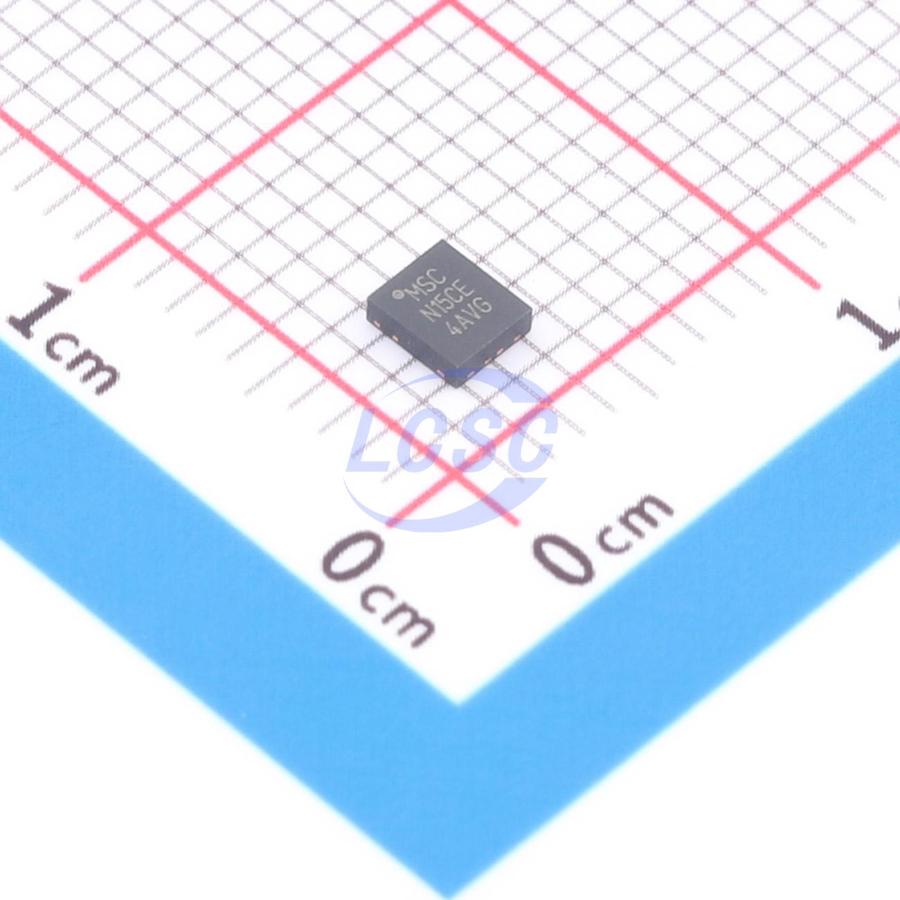

USBQNM50415CE3/TR7
32V 500W@8/20us 16.7V Bidirectional 15V QFN-143 TVS Diodes RoHS
- Manufacturer
- MICROCHIP
- Manufacturer part #
- USBQNM50415CE3/TR7
- Store part #
- C6797894
- Package / case
- QFN-143
- Category
- TVS Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C6797894
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹673.00 | ₹673.00 |
| 10+ | ₹661.94 | ₹6,619.40 |
| 61+ | ₹654.57 | ₹39,928.77 |
| 122+ | ₹647.20 | ₹78,958.40 |
1 × ₹673.00
₹673.00
excl. GST
₹794.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 61 per bag
USBQNM50415CE3/TR7
₹673.00 for 1 + GST
Specifications
- Clamping Voltage
- 32V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 500W@8/20us
- Voltage - Breakdown
- 16.7V
- Number of Channels
- 1
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 61 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.43 g
Overview
This Transient Voltage Suppressor (TVS) is assembled in a non-magnetic QFN-143 package with a leadframe 100% free of iron. It has the same pinout and footprint as the SOT-143 package and is aimed at applications in MRI machines and other magnetic environments where the use of ferrous metals is not acceptable. The configuration gives protection to 1 bidirectional data or interface line. It is designed for use in applications where low capacitance protection is required at the board level from voltage transients caused by electrostatic discharge (ESD) as defined in IEC 61000-4-2, electrical fast transients (EFT) per IEC 61000- 4-4 and the secondary effects of lightning. These TVS arrays have a peak power rating of 500 watts for an 8/20 μs pulse. With a capacitance of only 3 pF, this part can provide protection to very fast data lines including USB at 900 Mbits/sec.
Applications
- EIA RS485 data rates: 5 Mbps
- 10 Base-T Ethernet
- USB data rate 900 Mbps
- Non-magnetic for MRI applications
Key features
- Protects 1 bidirectional line
- Surge protection per IEC 61000-4-2 and IEC 61000-4-4
- Ultra low capacitance
- Low profile surface mount package
- RoHS compliant versions are available
