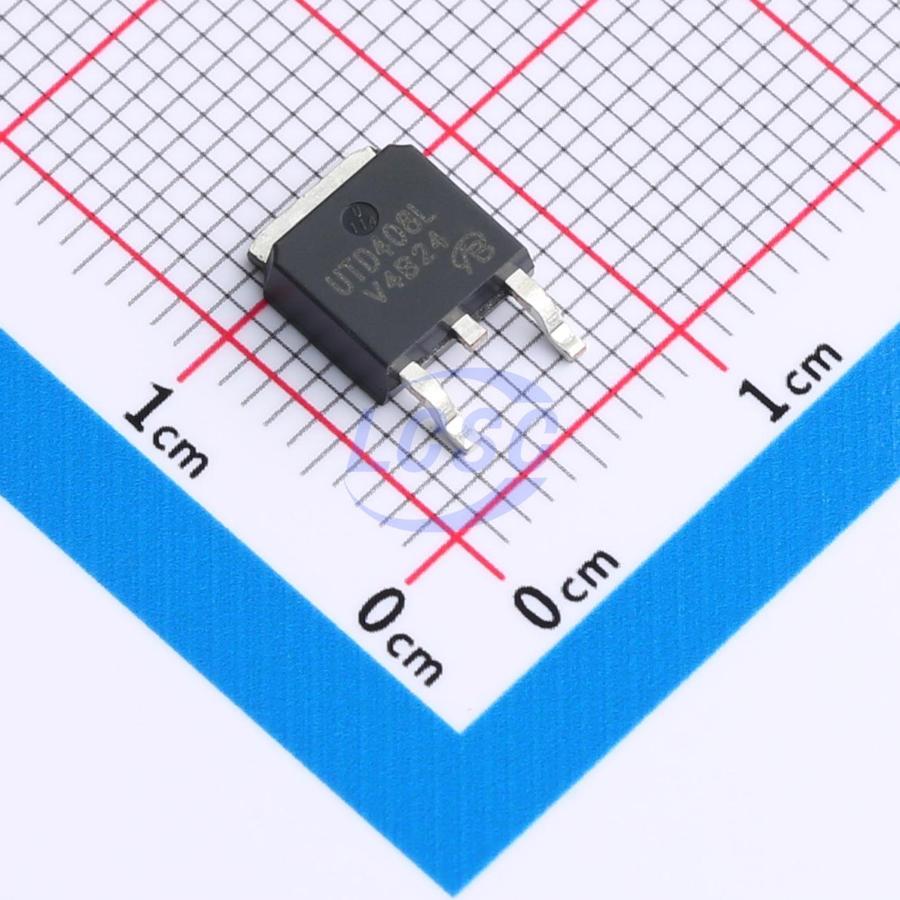

UTD408L-TN3-R-VB
N-Channel 30V 70A 100W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 70A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- UTD408L-TN3-R-VB
- Store part #
- C20755322
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C20755322
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.93 | ₹52.93 |
| 10+ | ₹42.02 | ₹420.20 |
| 30+ | ₹37.40 | ₹1,122.00 |
| 100+ | ₹31.51 | ₹3,151.00 |
| 500+ | ₹29.00 | ₹14,500.00 |
| 1,000+ | ₹27.32 | ₹27,320.00 |
1 × ₹52.93
₹52.93
excl. GST
₹62.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UTD408L-TN3-R-VB
₹52.93 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 525pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 2.201nF
- Pd - Power Dissipation
- 100W
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.412 g
Overview
Applications
- OR gate applications
- Servers
- DC-DC converters
Key features
- Trench Power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per EU Directive 2011/65/EU
