VISHAYDatasheet (PDF)

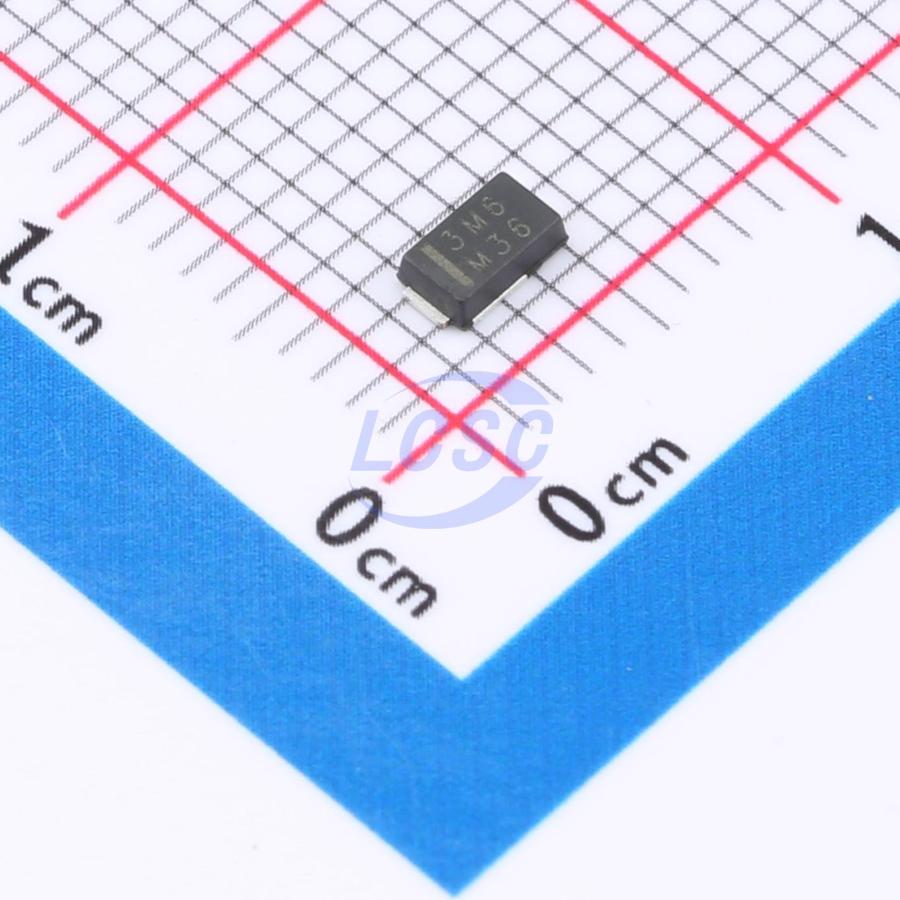

V3PM6-M3/H
Diode 1 Independent 60V 3A Surface Mount DO-220AA(SMP)
DO-220AA(SMP)ROHS3 CompliantActive
DIODE SCHOTTKY 60V DO-220AA(SMP)
- Manufacturer
- VISHAY
- Manufacturer part #
- V3PM6-M3/H
- Store part #
- C6014182
- Package / case
- DO-220AA(SMP)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C6014182
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.31 | ₹116.55 |
| 50+ | ₹22.81 | ₹1,140.50 |
| 150+ | ₹22.48 | ₹3,372.00 |
| 500+ | ₹22.15 | ₹11,075.00 |
5 × ₹23.31
₹116.55
excl. GST
₹137.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
V3PM6-M3/H
₹116.55 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - Forward(Vf@If)
- 550mV@3A
- Reverse Leakage Current (Ir)
- 200uA@60V
- Current - Rectified
- 3A
- Non-Repetitive Peak Forward Surge Current
- 80A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.126 g
Overview
Applications
- For use in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Low profile package Available
- Trench MOS Schottky technology
- Low power losses, high efficiency
- Low forward voltage drop RoHS COMPLIANT
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃ HALOGEN FREE
- AEC-Q101 qualified available - Automotive ordering code; base P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS3P6HM3/85A#C2981051VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 2,100 | ₹15.24 · 2,100 in stock | View |
 | V3PM63-M3/H#C20039100VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 296 | ₹70.73 · 296 in stock | View |
 | V3P6HM3_A/H#C3759369VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 1,155 | ₹37.37 · 1,155 in stock | View |
 | SS3P6HM3/84A#C968544VISHAY · DO-220AA | VISHAY | DO-220AA | 290 | ₹20.93 · 290 in stock | View |
| V3PM10-M3/I#C3757617VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | On request | ₹15.14 · 0 in stock | View | |
