VISHAYDatasheet (PDF)

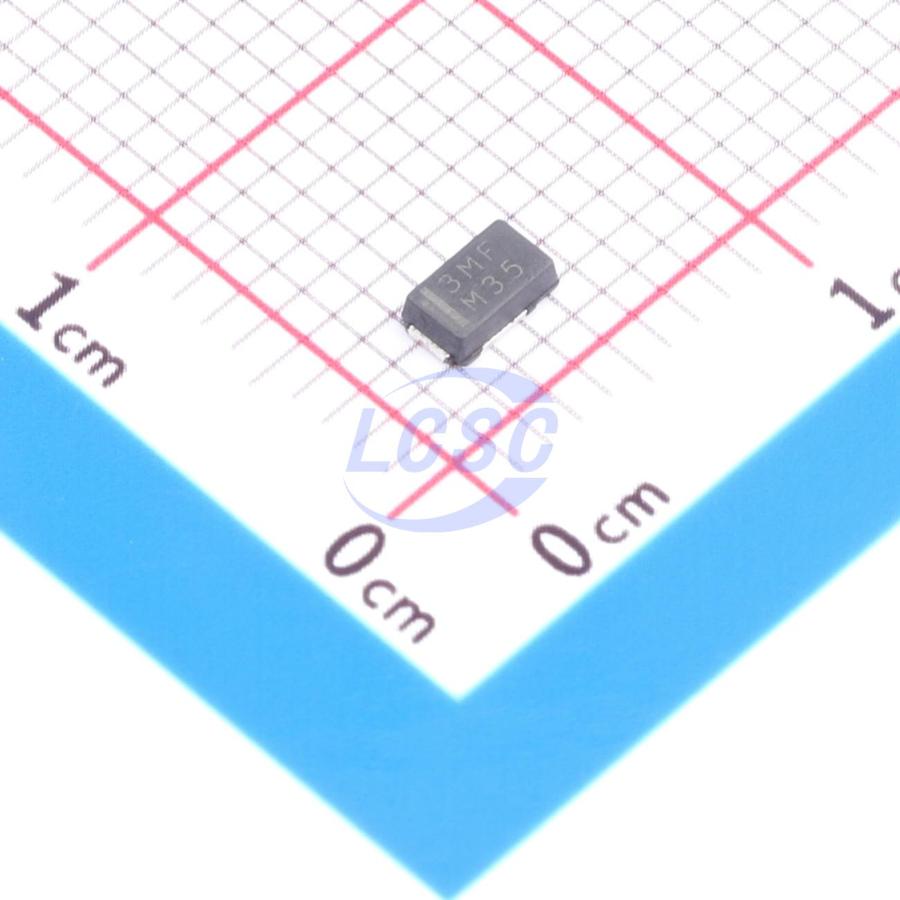

V3PM63-M3/H
1 Independent 60V 650mV@3A 3A DO-220AA(SMP) Single Diodes RoHS
DO-220AA(SMP)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- V3PM63-M3/H
- Store part #
- C20039100
- Package / case
- DO-220AA(SMP)
- Category
- Single Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
296 in stock
#C20039100
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.73 | ₹70.73 |
| 10+ | ₹69.43 | ₹694.30 |
| 30+ | ₹68.78 | ₹2,063.40 |
| 100+ | ₹67.92 | ₹6,792.00 |
1 × ₹70.73
₹70.73
excl. GST
₹83.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per bag
V3PM63-M3/H
₹70.73 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - Forward(Vf@If)
- 650mV@3A
- Reverse Leakage Current (Ir)
- 10uA@60V
- Current - Rectified
- 3A
- Non-Repetitive Peak Forward Surge Current
- 60A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 3,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
Applications
- For low-voltage, high-frequency inverter, freewheeling, DC/DC converter, and polarity protection applications.
Key features
- Thin package
- Trench MOS Schottky technology
- Low power loss, high efficiency
- Low forward voltage drop
- MSL Level 1 per J-STD-020, LF max peak 260°C
- AEC-Q101 qualified parts available
- Automotive ordering code; base part number HM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | V3P6HM3_A/H#C3759369VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 1,155 | ₹37.37 · 1,155 in stock | View |
 | SS3P6HM3/85A#C2981051VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 2,100 | ₹15.24 · 2,100 in stock | View |
 | V3PM6-M3/H#C6014182VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 85 | ₹23.31 · 85 in stock | View |
 | SS3P6HM3/84A#C968544VISHAY · DO-220AA | VISHAY | DO-220AA | 290 | ₹20.93 · 290 in stock | View |
| V3PM63HM3/H#C20039101VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | On request | ₹34.69 · 0 in stock | View | |
