VBsemi ElecDatasheet (PDF)

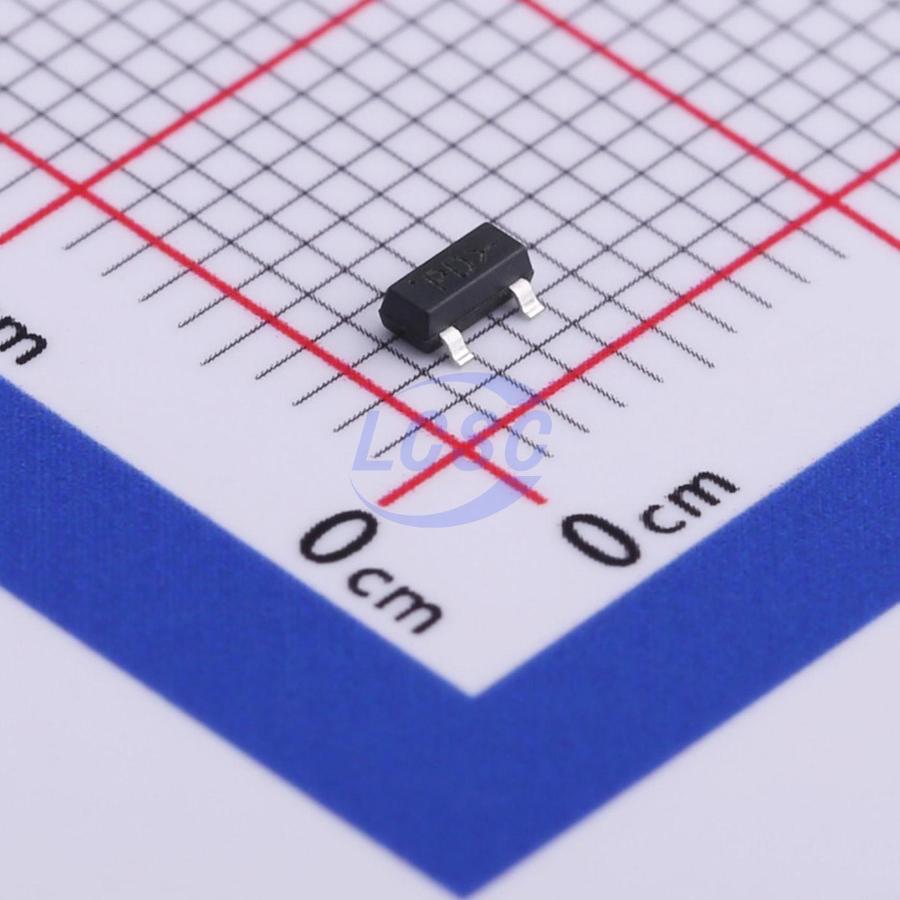

VB2703K
P-Channel 70V 400mA 420mW Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 70V 400mA SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VB2703K
- Store part #
- C516879
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C516879
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.17 | ₹190.85 |
| 50+ | ₹30.30 | ₹1,515.00 |
| 150+ | ₹26.92 | ₹4,038.00 |
| 500+ | ₹22.72 | ₹11,360.00 |
| 3,000+ | ₹20.18 | ₹60,540.00 |
| 6,000+ | ₹19.05 | ₹1,14,300.00 |
5 × ₹38.17
₹190.85
excl. GST
₹225.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VB2703K
₹190.85 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 70V
- Output Capacitance(Coss)
- 10pF
- Current - Continuous Drain(Id)
- 400mA
- Ciss-Input Capacitance
- 22pF
- Pd - Power Dissipation
- 420mW
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 3.6Ω@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 1.9nC@15V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- High-side switching
- Low on-resistance: 3 Ω
- Low threshold: -2 V (typical)
- Fast switching speed: 20 ns (typical)
- Low input capacitance: 20 pF (typical)
- RoHS compliant per directive 2002/95/EC
- P-channel MOSFET
