VBsemi ElecDatasheet (PDF)

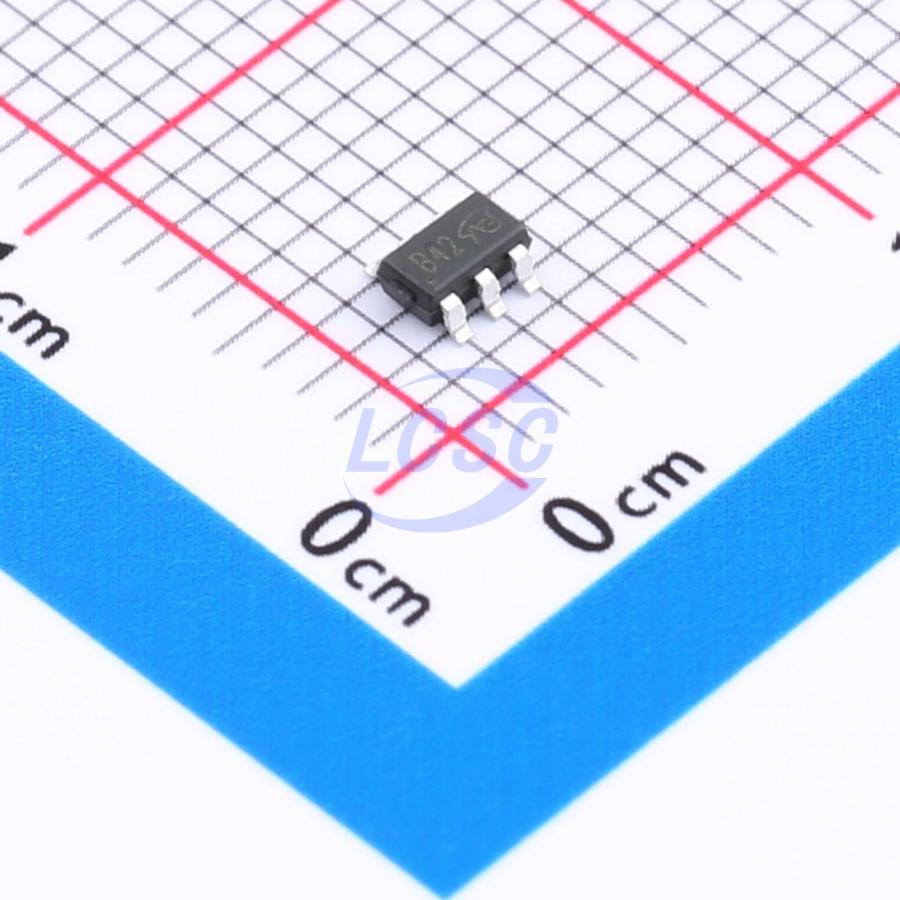

VB4290A
P-Channel 20V 4A 1.14W Surface Mount TSOP-6
TSOP-6RoHSActive
MOSFET P-CH 20V 4A TSOP-6
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VB4290A
- Store part #
- C42412613
- Package / case
- TSOP-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C42412613
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.83 | ₹194.15 |
| 50+ | ₹32.35 | ₹1,617.50 |
| 150+ | ₹29.58 | ₹4,437.00 |
| 500+ | ₹26.12 | ₹13,060.00 |
| 3,000+ | ₹16.99 | ₹50,970.00 |
| 6,000+ | ₹16.06 | ₹96,360.00 |
5 × ₹38.83
₹194.15
excl. GST
₹229.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VB4290A
₹194.15 for 5 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4A
- Output Capacitance(Coss)
- 45pF
- Ciss-Input Capacitance
- 210pF
- Pd - Power Dissipation
- 1.14W
- Reverse Transfer Capacitance (Crss)
- 33pF
- RDS(on)
- 90mΩ@2.5V
- Gate Charge(Qg)
- 2.7nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Applications
- Load switch for portable applications
- Battery switch for portable devices
- Computers
- Bus switch
- Load switch
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- RoHS compliant per directive 2002/95/EC
