VBsemi ElecDatasheet (PDF)

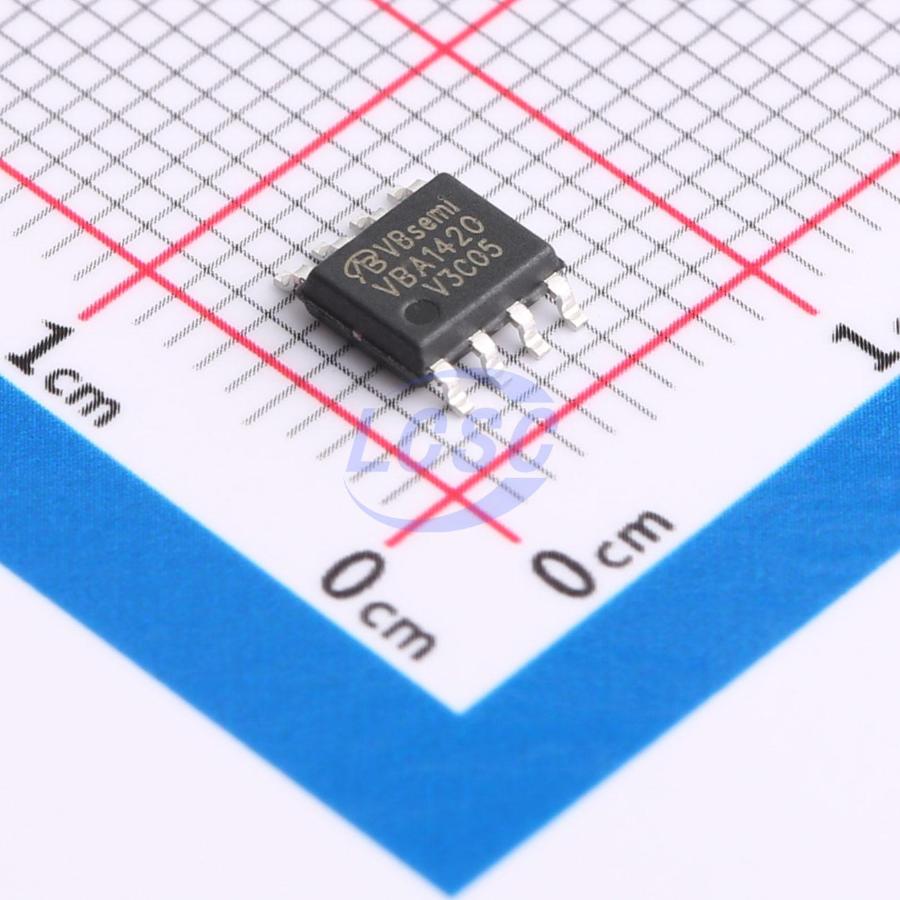

VBA1420
N-Channel 40V 25A Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 40V 25A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBA1420
- Store part #
- C967450
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C967450
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.40 | ₹187.00 |
| 50+ | ₹29.57 | ₹1,478.50 |
| 150+ | ₹26.21 | ₹3,931.50 |
| 500+ | ₹22.01 | ₹11,005.00 |
| 2,500+ | ₹20.15 | ₹50,375.00 |
| 4,000+ | ₹19.04 | ₹76,160.00 |
5 × ₹37.40
₹187.00
excl. GST
₹220.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
VBA1420
₹187.00 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 25A
- Output Capacitance(Coss)
- 90pF
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 5W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 16mΩ@10V;19mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.162 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
Key features
- Compliant with halogen-free standard as defined by IEC 61249-2-21
- Trench power MOSFET
- Optimized for "low-side" synchronous rectifier operation
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free products available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP9479GM-VB#C22389708VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹58.19 · 15 in stock | View |
 | TSM4436CS RLG-VB#C5355720VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 40 | ₹59.67 · 40 in stock | View |
 | AP9474GM-VB#C693434VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 29 | ₹68.28 · 29 in stock | View |
 | VBA1402#C7429141VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 17 | ₹121.69 · 17 in stock | View |
