VBsemi ElecDatasheet (PDF)

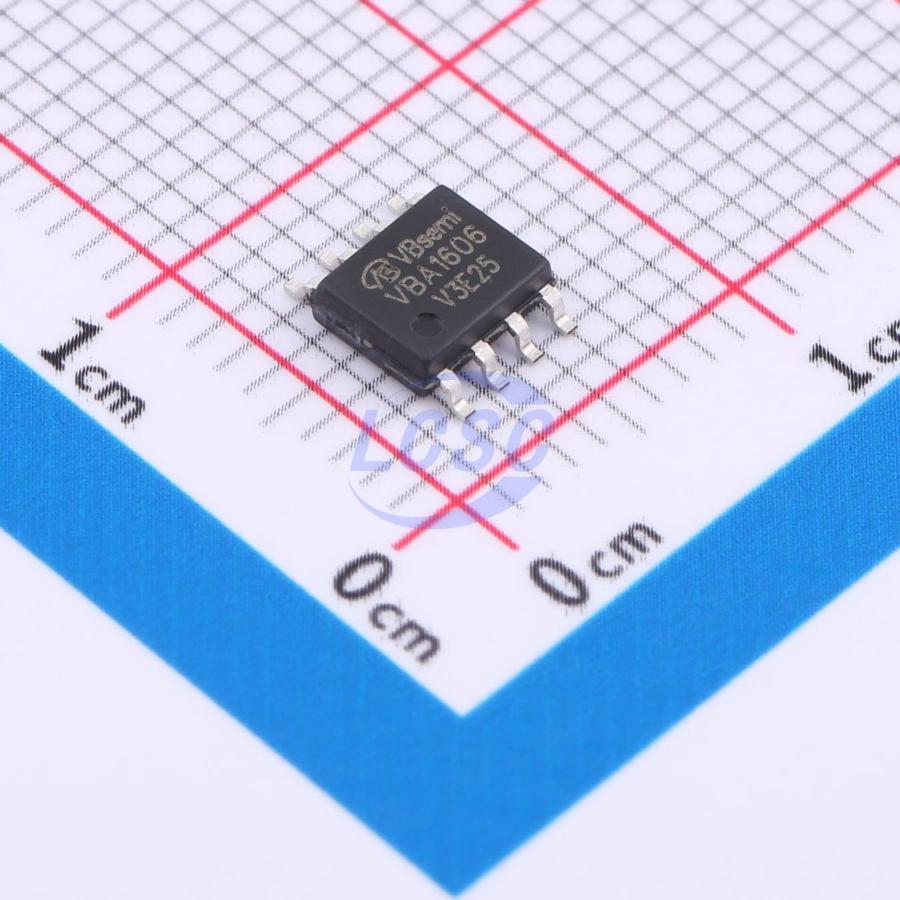

VBA1606
N-Channel 60V 16A 7.1W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 60V 16A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBA1606
- Store part #
- C7429142
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7429142
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹131.49 | ₹131.49 |
| 10+ | ₹110.81 | ₹1,108.10 |
| 30+ | ₹100.36 | ₹3,010.80 |
| 100+ | ₹90.14 | ₹9,014.00 |
| 500+ | ₹63.36 | ₹31,680.00 |
| 1,000+ | ₹60.30 | ₹60,300.00 |
1 × ₹131.49
₹131.49
excl. GST
₹155.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
VBA1606
₹131.49 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 382pF
- Current - Continuous Drain(Id)
- 16A
- Ciss-Input Capacitance
- 2.531nF
- Pd - Power Dissipation
- 7.1W
- Reverse Transfer Capacitance (Crss)
- 153pF
- RDS(on)
- 4.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 45nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.134 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction (PFC)
- Lighting
- High intensity discharge (HID) lamps
- Fluorescent lamp ballast lighting
- Industrial applications
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
- N-channel MOSFET
