VBsemi Elec

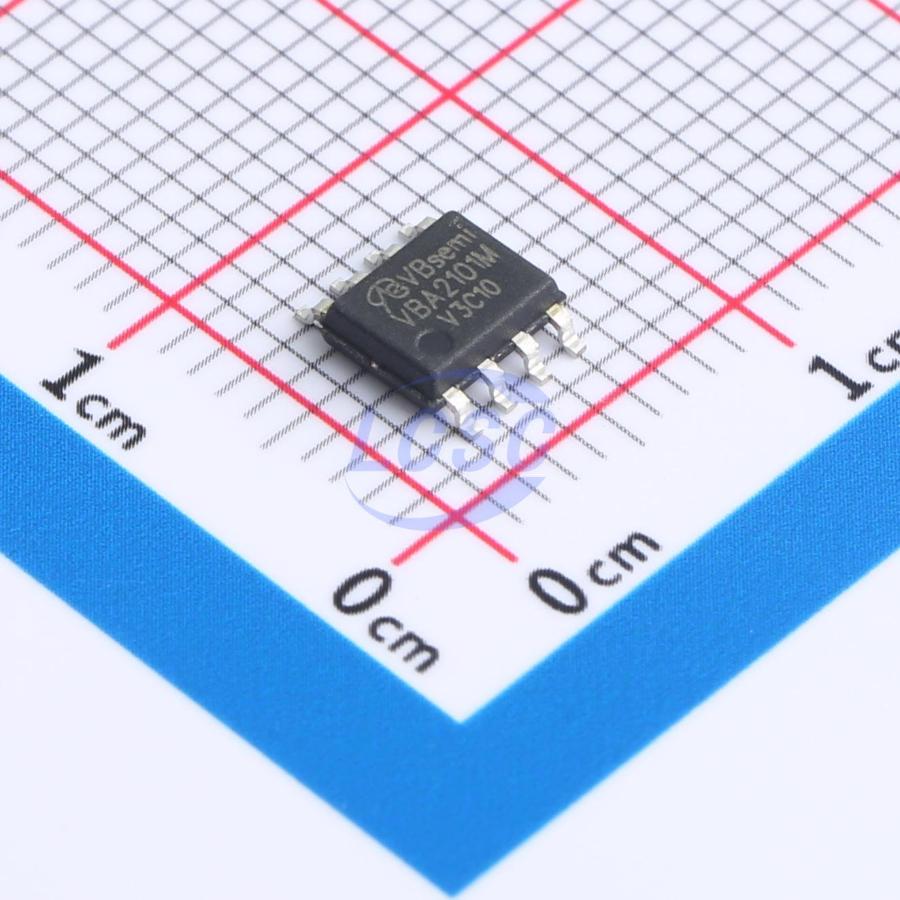

VBA2101M

P-Channel 100V 4.5A 27.8W Surface Mount SO-8

SO-8ROHS CompliantActive

MOSFET P-CH 100V 4.5A SO-8

Manufacturer: VBsemi Elec
Manufacturer part #: VBA2101M
Store part #: C7541168
Package / case: SO-8
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C7541168

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹111.54	₹111.54
10+	₹90.12	₹901.20
30+	₹79.41	₹2,382.30
100+	₹68.90	₹6,890.00
500+	₹60.92	₹30,460.00
1,000+	₹57.56	₹57,560.00

Quantity (min 1)

1 × ₹111.54

₹111.54

excl. GST

₹131.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

VBA2101M

₹111.54 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Drain to Source Voltage: 100V
Output Capacitance(Coss): 162pF
Current - Continuous Drain(Id): 4.5A
Ciss-Input Capacitance: 515pF
Pd - Power Dissipation: 27.8W
Reverse Transfer Capacitance (Crss): 10pF
RDS(on): 110mΩ@10V;155mΩ@4.5V
Number: 1 P-Channel
Gate Charge(Qg): 10.9nC@10V
Gate Threshold Voltage (Vgs(th)): 2.6V
Type: P-Channel

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.37 g

Overview

Applications

Active clamp in intermediate DC/DC power supplies - LED lighting - Load switching

Key features

Trench power MOSFET
100% Rg and UIS tested
