VBsemi ElecDatasheet (PDF)

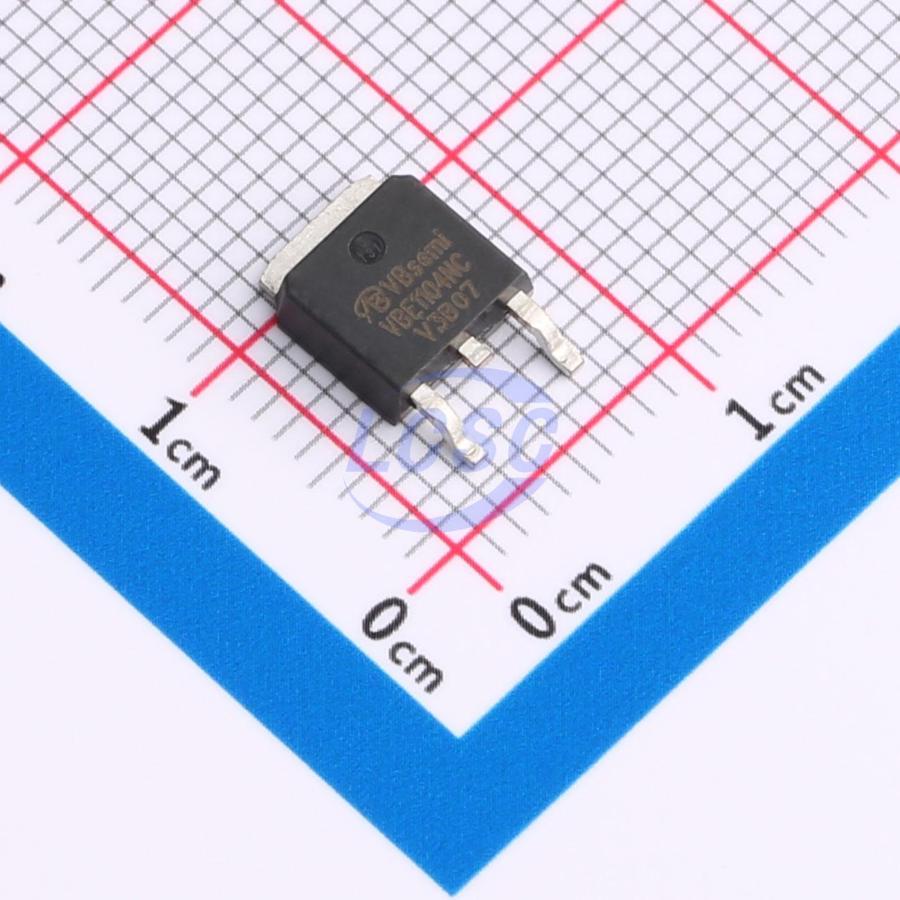

VBE1104NC
N-Channel 100V 33A 107W Surface Mount TO-252-2
TO-252-2RoHSActive
MOSFET N-CH 100V 33A TO-252-2
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBE1104NC
- Store part #
- C967490
- Package / case
- TO-252-2
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C967490
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.87 | ₹105.87 |
| 10+ | ₹85.70 | ₹857.00 |
| 30+ | ₹75.62 | ₹2,268.60 |
| 100+ | ₹65.75 | ₹6,575.00 |
| 500+ | ₹59.87 | ₹29,935.00 |
| 1,000+ | ₹56.72 | ₹56,720.00 |
1 × ₹105.87
₹105.87
excl. GST
₹124.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBE1104NC
₹105.87 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 33A
- Output Capacitance(Coss)
- 290pF
- Ciss-Input Capacitance
- 2.5nF
- Pd - Power Dissipation
- 107W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 36mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.414 g
Overview
Applications
- DC/DC converter
- Load switch for portable applications
Key features
- Trench power MOSFET
- Junction temperature 175 °C
- Low thermal resistance package
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 25N10L-TN3-R-VB#C18212566VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 33 | ₹108.38 · 33 in stock | View |
 | AP25N10GH-HF-VB#C18794988VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 46 | ₹108.38 · 46 in stock | View |
 | AM40N08-30D-T1-PF-VB#C19188129VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹110.07 · 50 in stock | View |
 | P2610BD-VB#C19190206VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 26 | ₹131.49 · 26 in stock | View |
 | AM40N10-30D-VB#C19190240VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 35 | ₹107.14 · 35 in stock | View |
