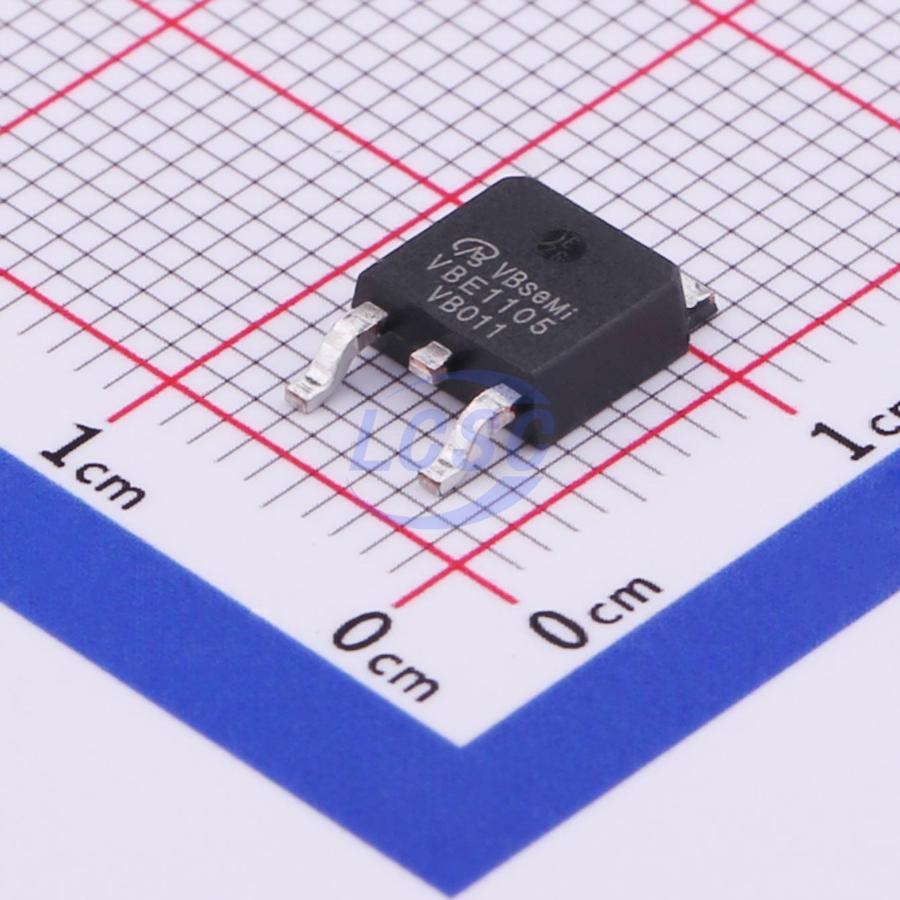

VBE1105
N-Channel 100V 100A 3.35W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 100A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBE1105
- Store part #
- C516889
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C516889
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹224.22 | ₹224.22 |
| 10+ | ₹186.68 | ₹1,866.80 |
| 30+ | ₹166.08 | ₹4,982.40 |
| 100+ | ₹135.18 | ₹13,518.00 |
| 500+ | ₹124.88 | ₹62,440.00 |
| 1,000+ | ₹120.15 | ₹1,20,150.00 |
1 × ₹224.22
₹224.22
excl. GST
₹264.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBE1105
₹224.22 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 410pF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 2.8nF
- Pd - Power Dissipation
- 3.35W
- Reverse Transfer Capacitance (Crss)
- 210pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 90nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.254 g
Overview
Applications
- Isolated DC/DC Converter
Key features
- Trench power MOSFET
- 175°C junction temperature
- Low thermal resistance package
- 100% gate resistance (Rg) tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD90N10S4L-06-VB#C7568804VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 1 | ₹211.94 · 1 in stock | View |
 | IPD068N10N3G-VB#C7463438VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 3 | ₹256.23 · 3 in stock | View |
